Weatherproof Distribution Box/Weatherproof db box

    The Nante Weatherproof DB Box is engineered to deliver secure, orderly, and dependable power distribution in demanding indoor and outdoor settings. Frequently deployed on construction projects, industrial plants, commercial properties, and temporary electrical setups, it maintains consistent performance even in severe weather exposure.

    Built from durable, corrosion-proof materials and equipped with superior IP-rated enclosure, the Nante weatherproof distribution box reliably shields against water ingress, dust accumulation, and external impacts. Its thoughtfully designed interior configuration facilitates safe circuit management and straightforward installation, while advanced sealing techniques and insulation properties ensure heightened safety, extended service life, and sustained operational dependability.

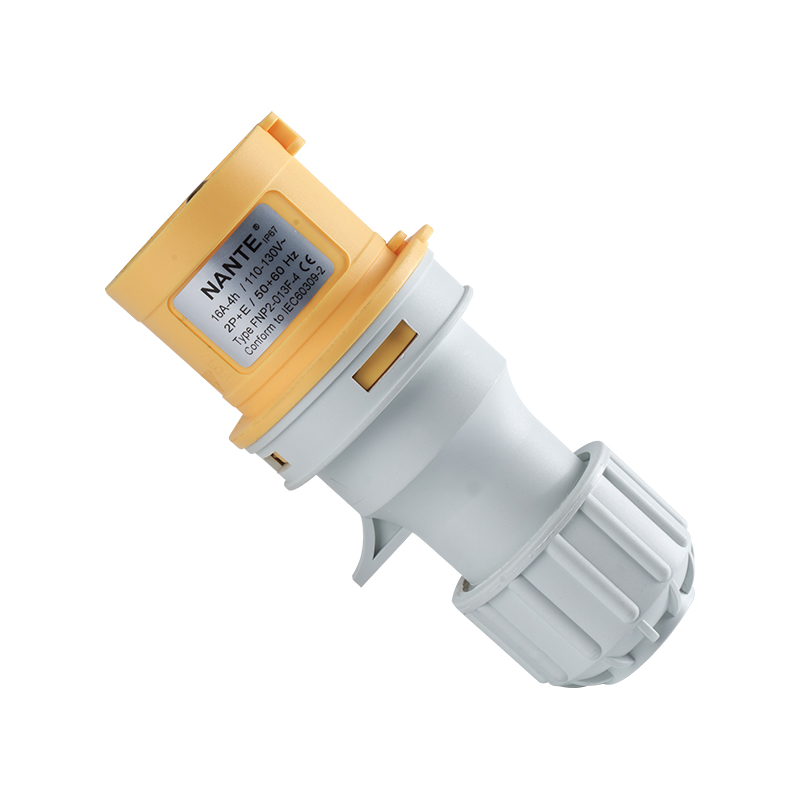

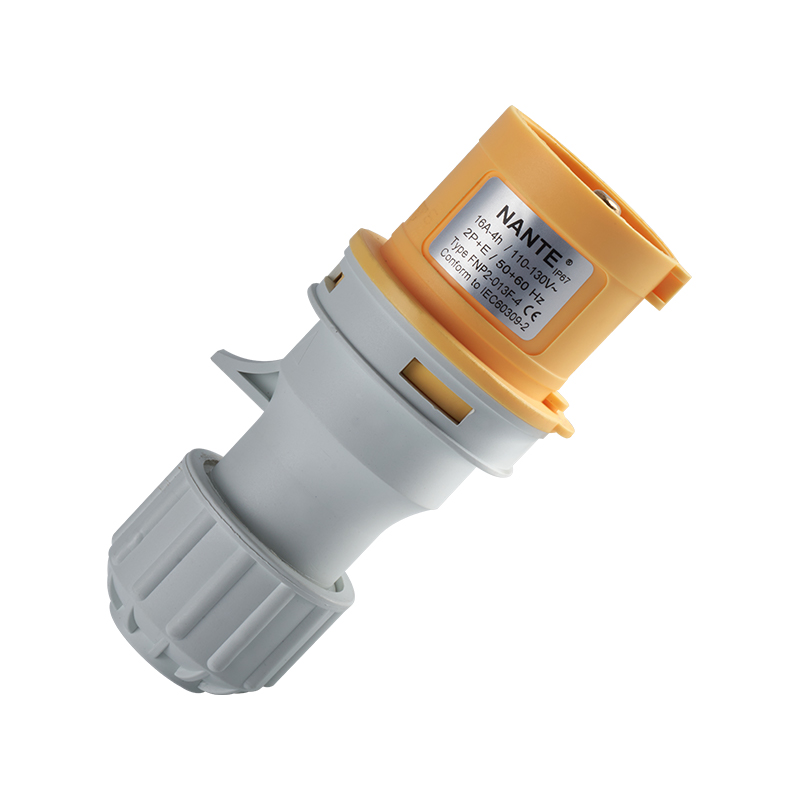

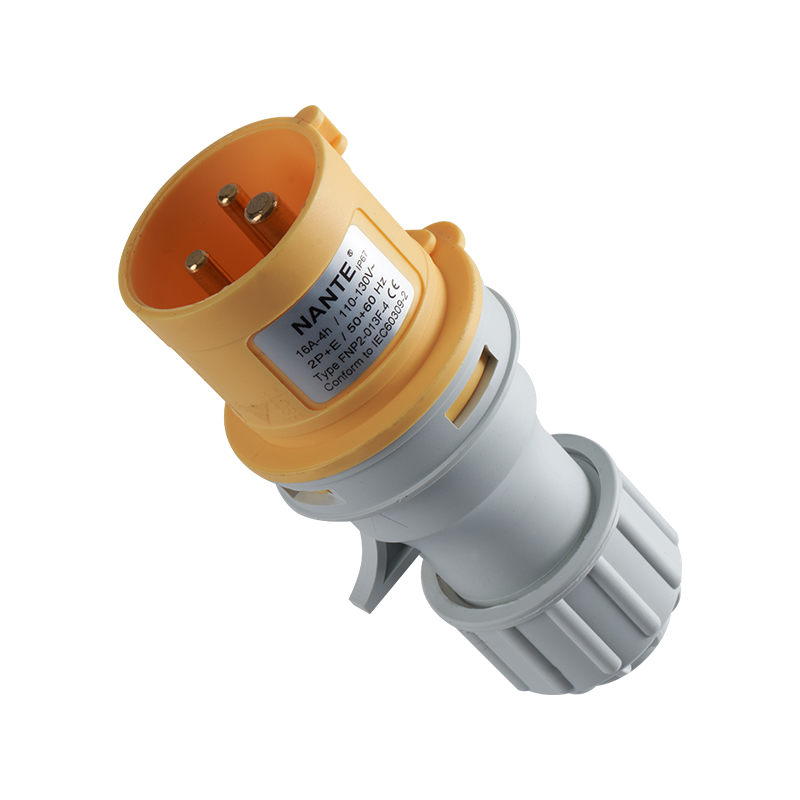

    2P+E

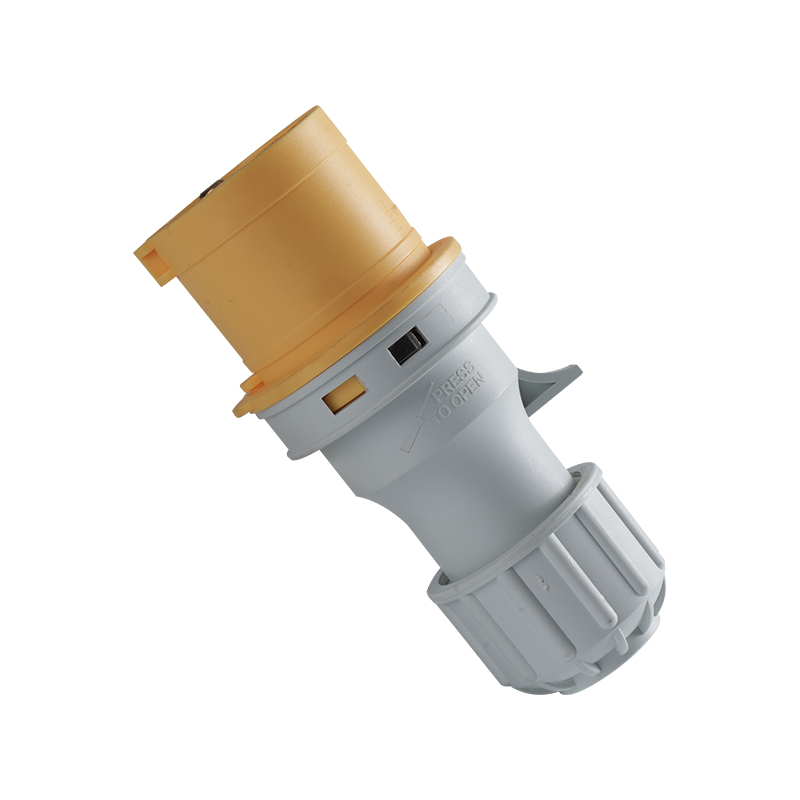

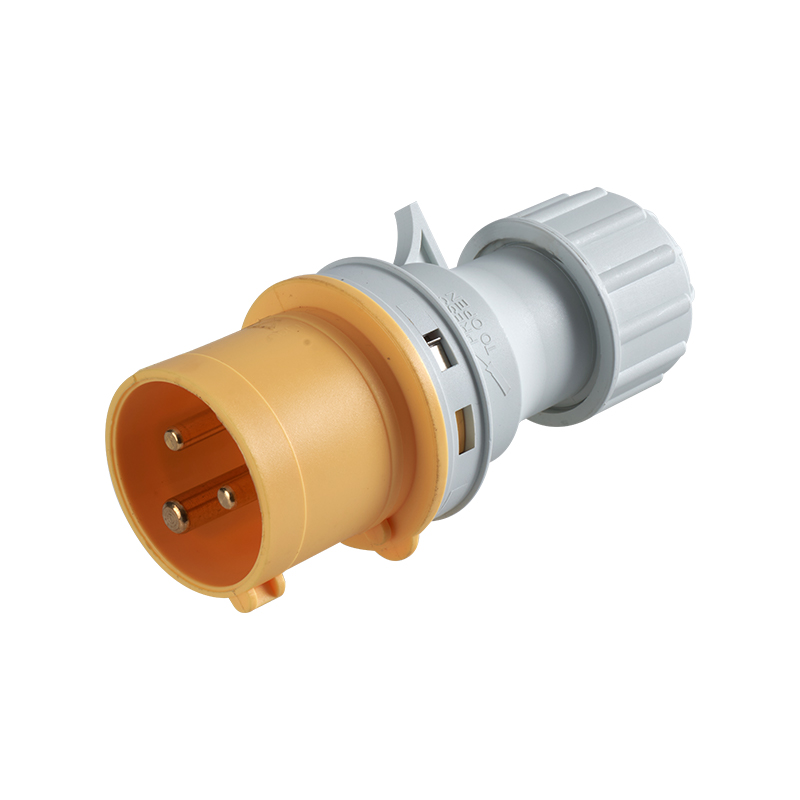

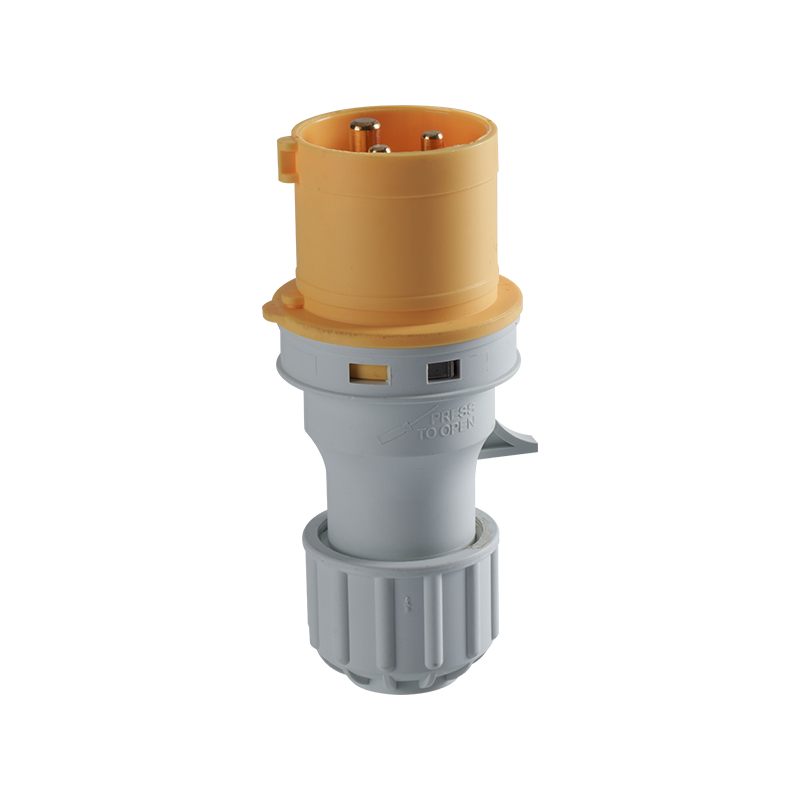

    FNP2-013-4

    Earth contact position
    Normal current(A)
    4h
    16A
    No.poles 2P+E
    Dimension (mm) a
    b
    c
    d
    127
    87
    46.5
    42.5
    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 110-130V~
    Protection degree IP44

    2P+E

    FNP2-023-4

    Earth contact position
    Normal current(A)
    4h
    32A
    No.poles 2P+E
    Dimension (mm) a
    b
    c
    d
    158
    105
    63
    55.5
    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 110-130V~
    Protection degree IP44

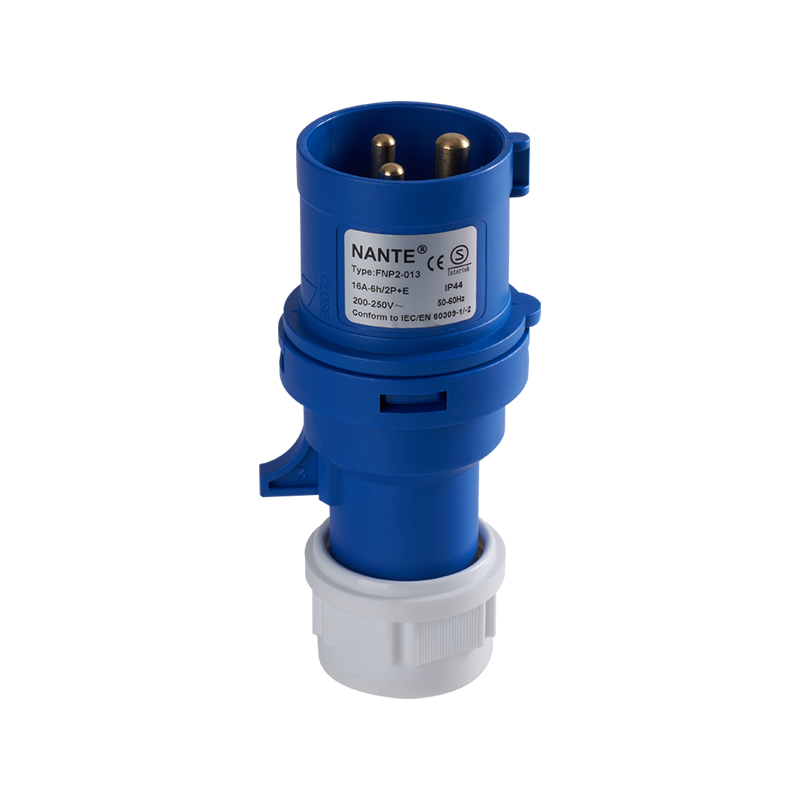

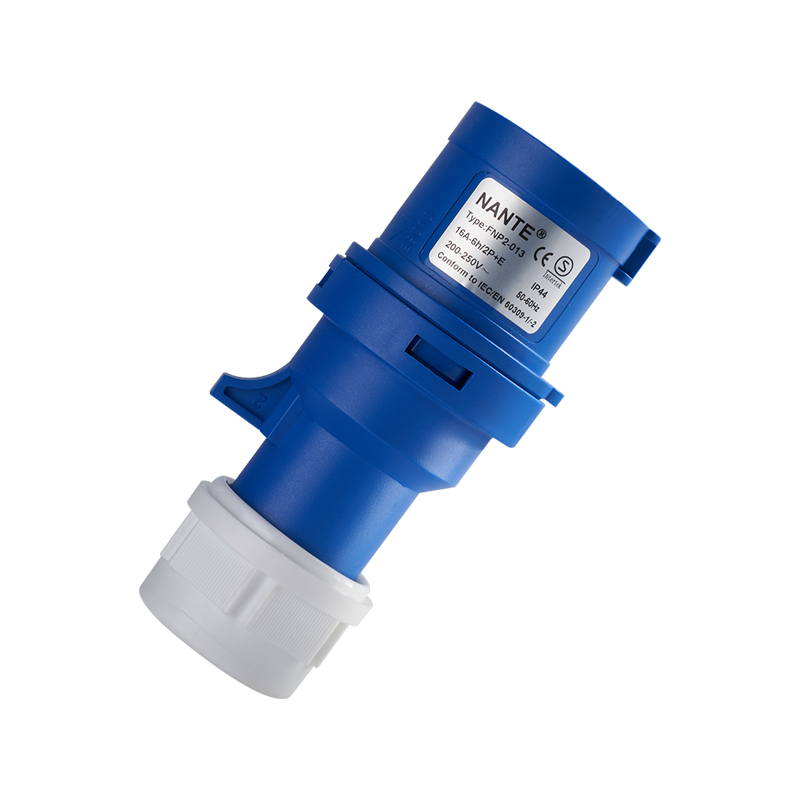

    2P+E

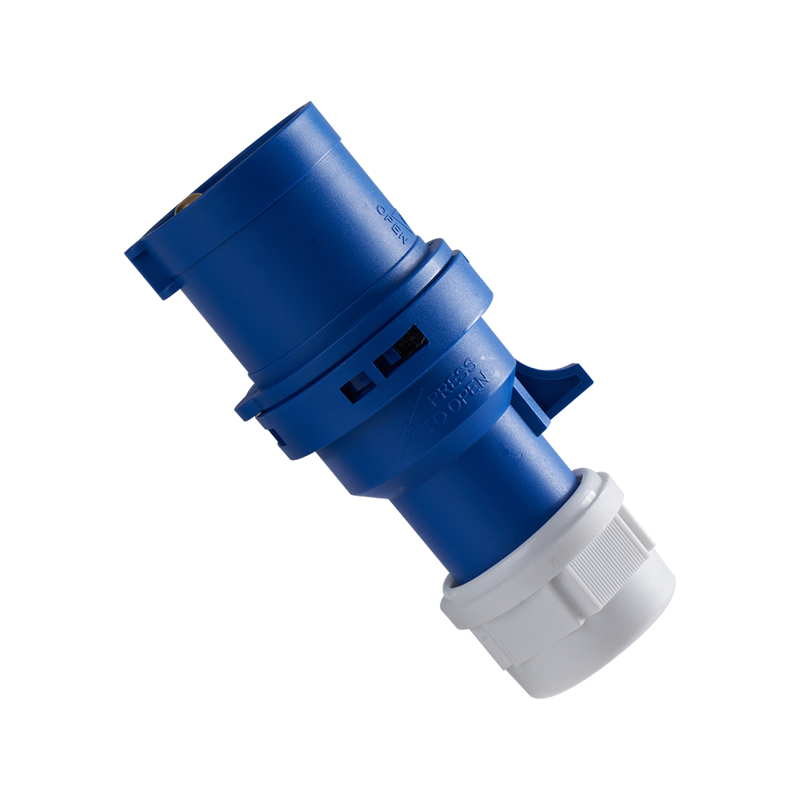

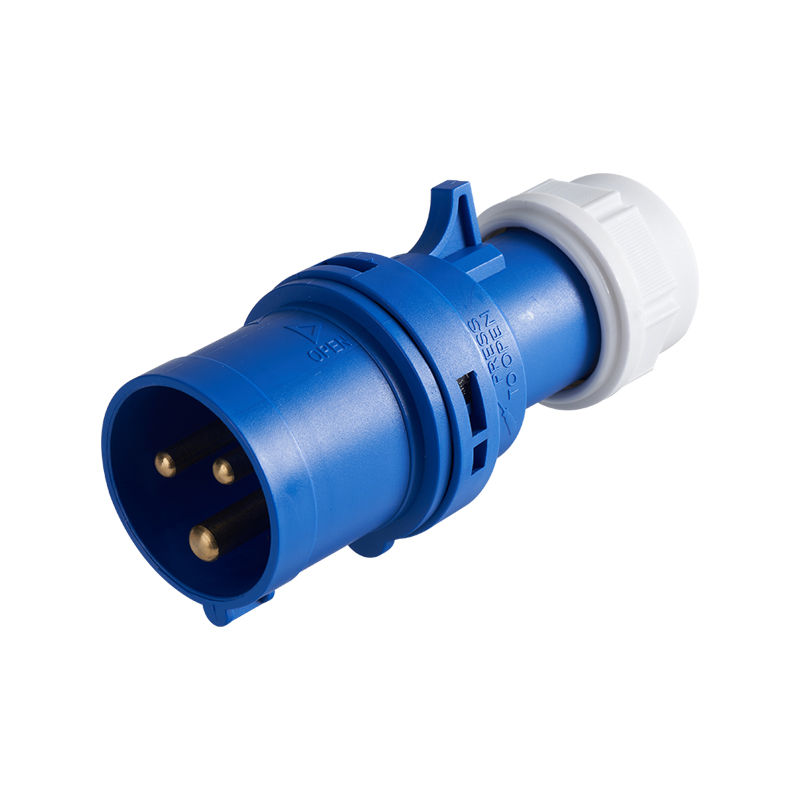

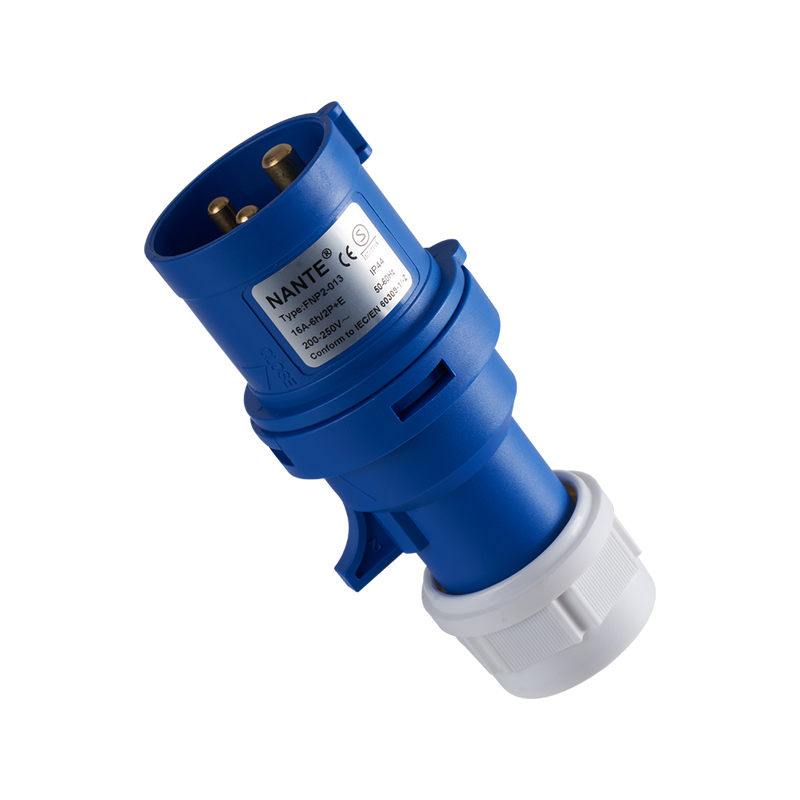

    FNP2-013

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 2P+E
    Dimension (mm) a
    b
    c
    d
    118
    82
    46.5
    42.5
    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 200-250V~
    Protection degree IP44

    2P+E

    FNP2-023

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 2P+E
    Dimension (mm) a
    b
    c
    d
    138
    95.5
    63
    55.5
    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 200-250V~
    Protection degree IP44

    3P+E

    FNP2-014

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 3P+E
    Dimension (mm) a
    b
    c
    d
    124
    88.5
    53.5
    42.5
    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 380-415V~
    Protection degree IP44

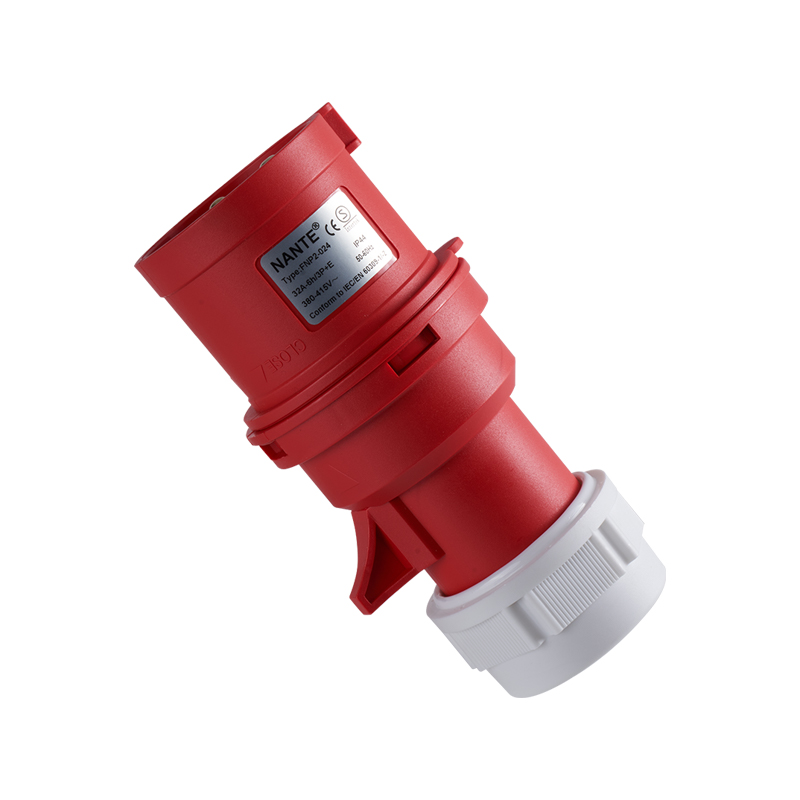

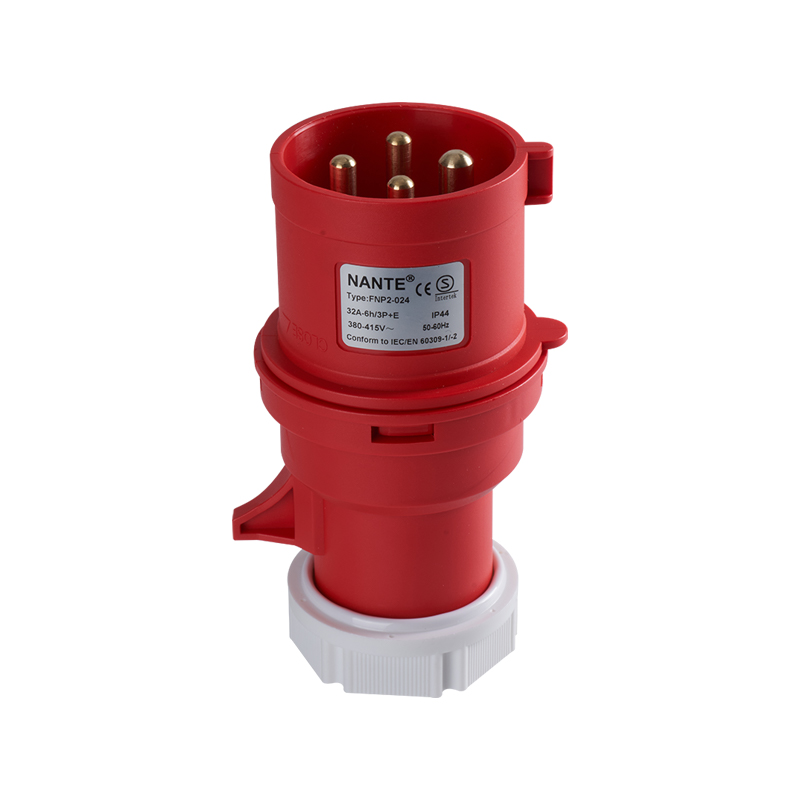

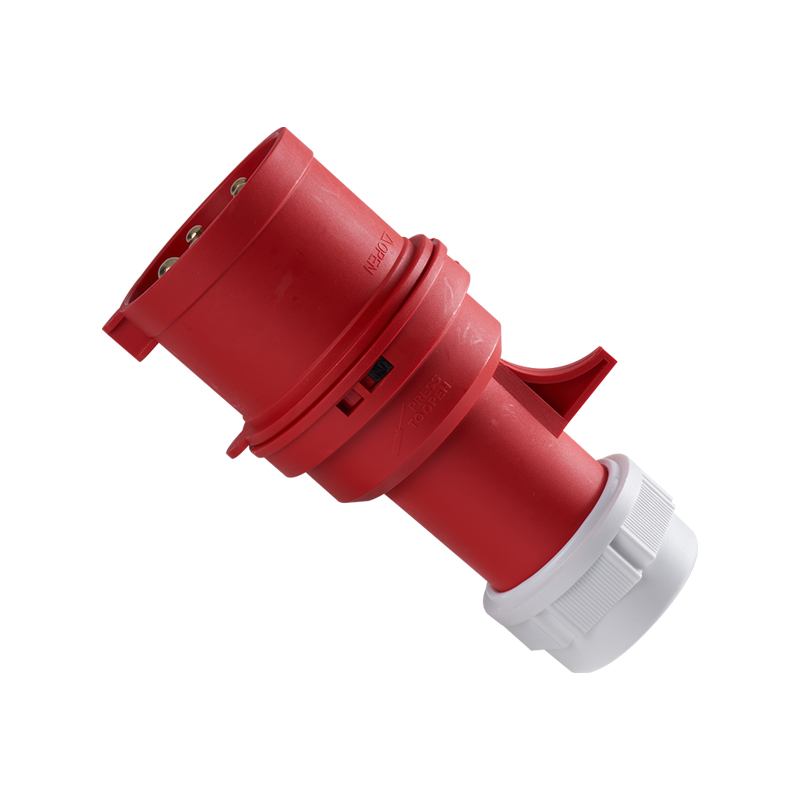

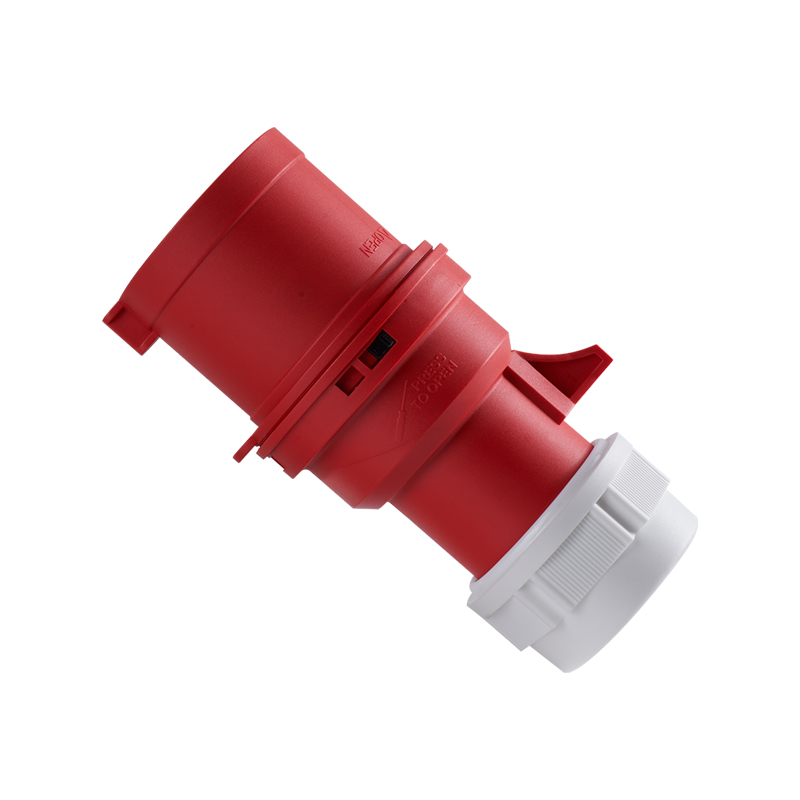

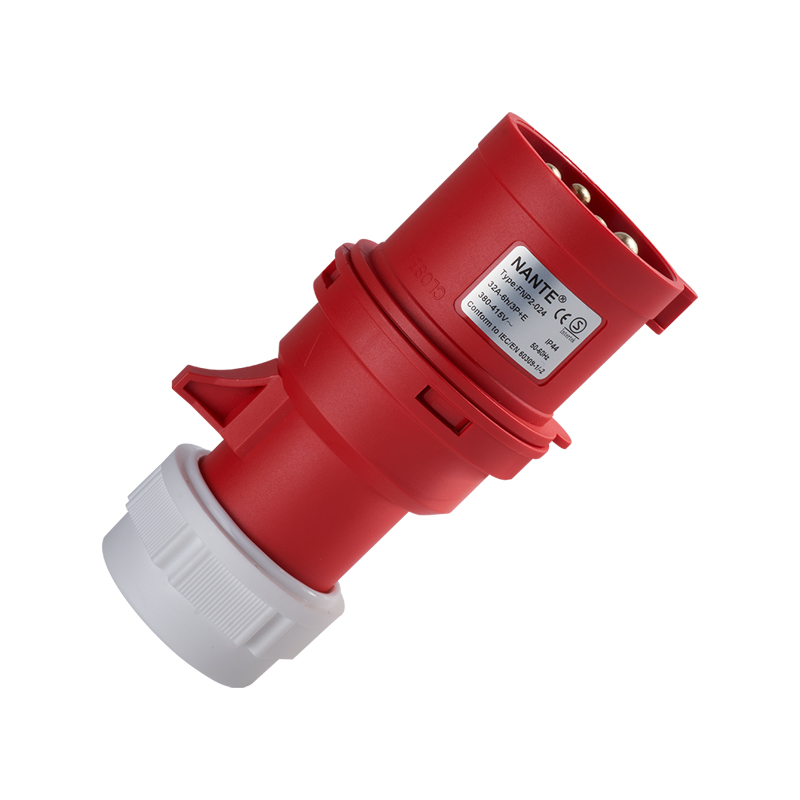

    3P+E

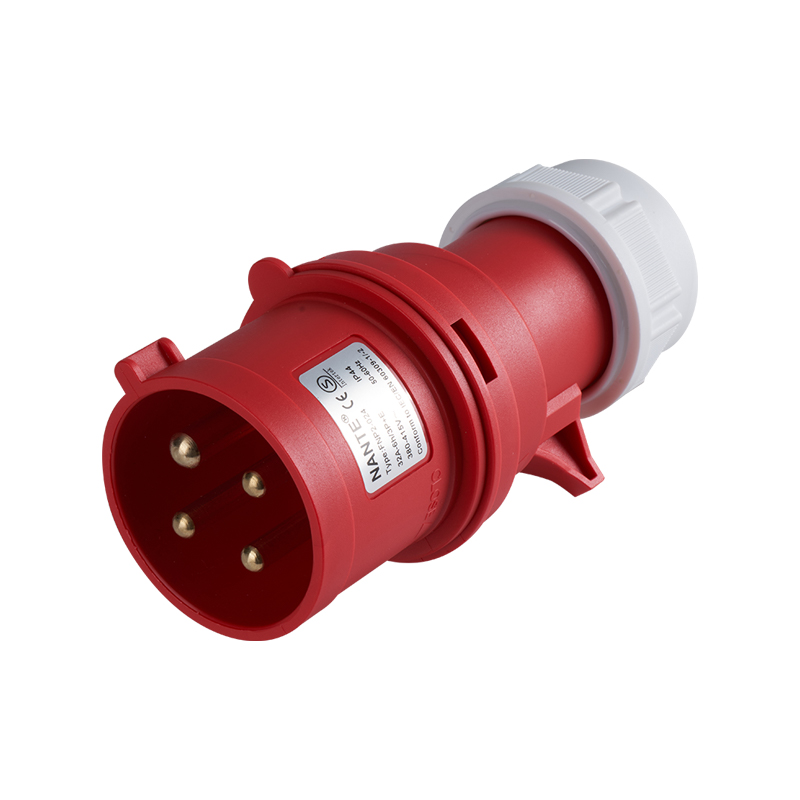

    FNP2-024

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 3P+E
    Dimension (mm) a
    b
    c
    d
    138
    95.5
    63
    55.5
    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 380-415V~
    Protection degree IP44

    3P+N+E

    FNP2-015

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 3P+N+E
    Dimension (mm) a
    b
    c
    d
    128
    94
    60.5
    45.5
    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 200-346V~/240-415V
    Protection degree IP44

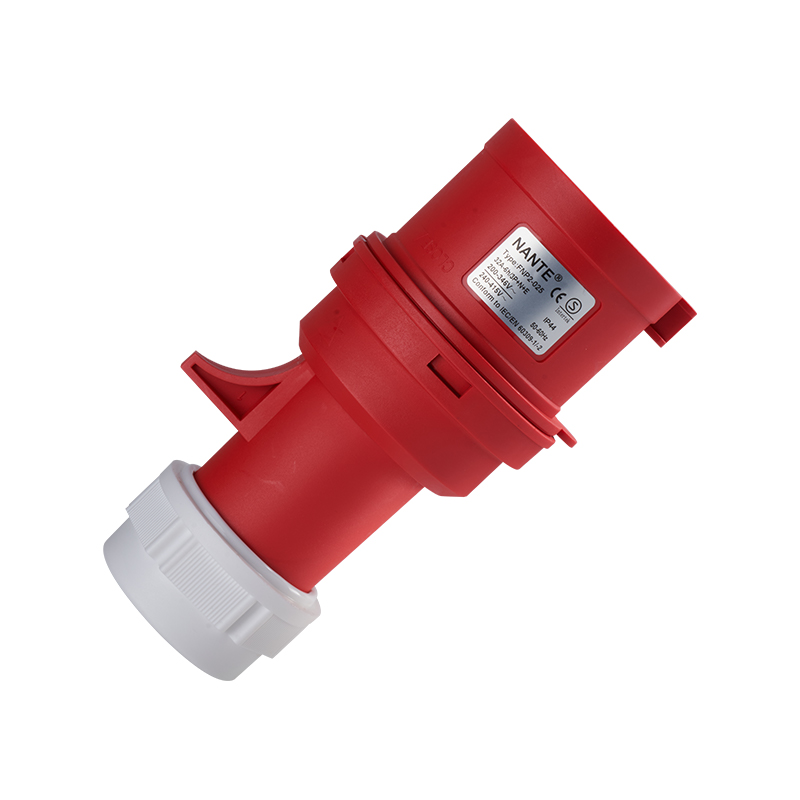

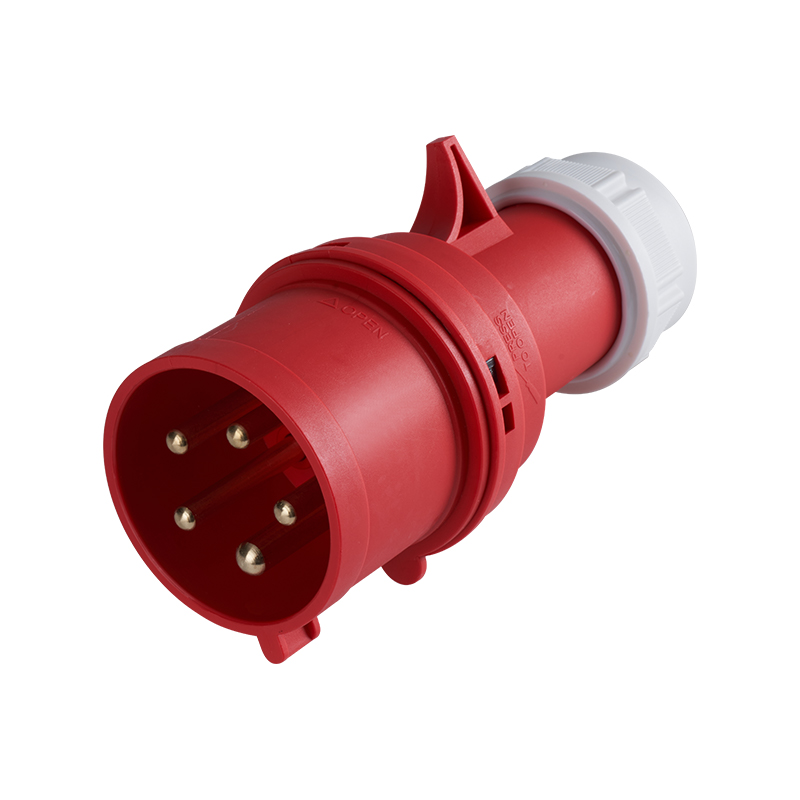

    3P+N+E

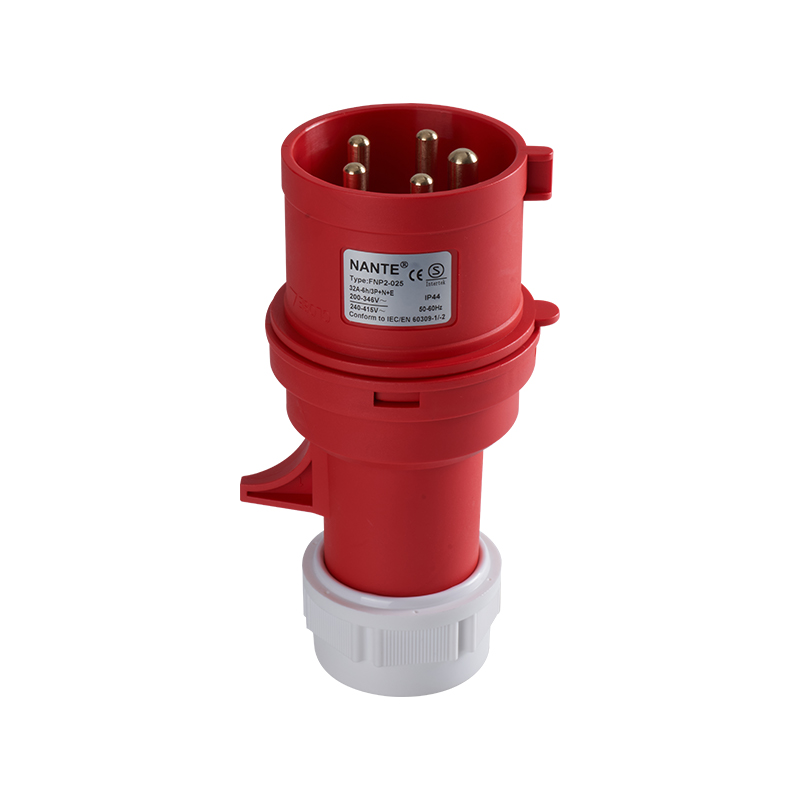

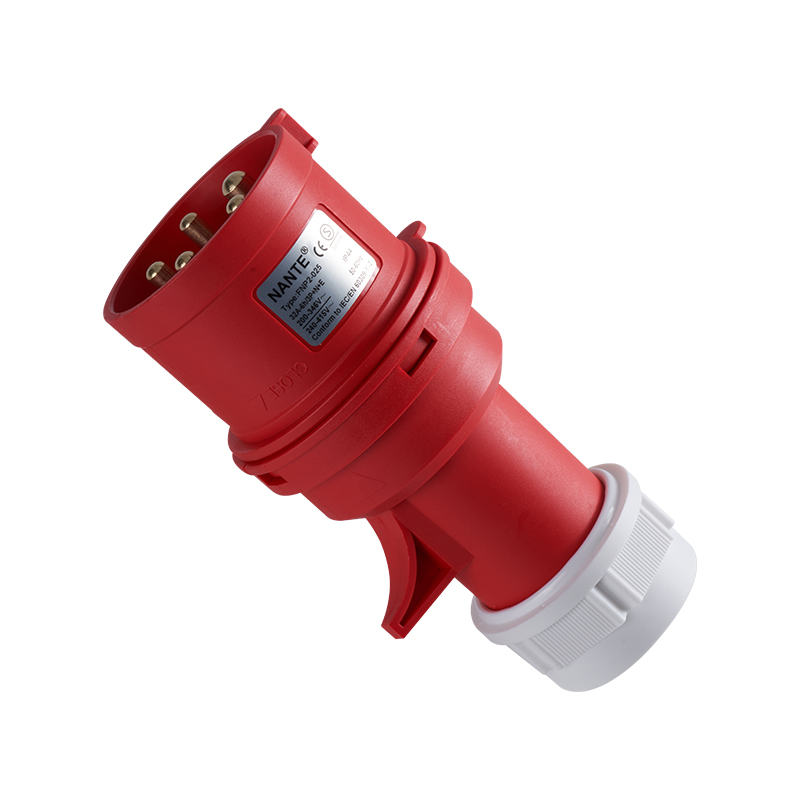

    FNP2-025

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 3P+N+E
    Dimension (mm) a
    b
    c
    d
    142
    100
    69.5
    55.5
    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 200-346V~/240-415V
    Protection degree IP44

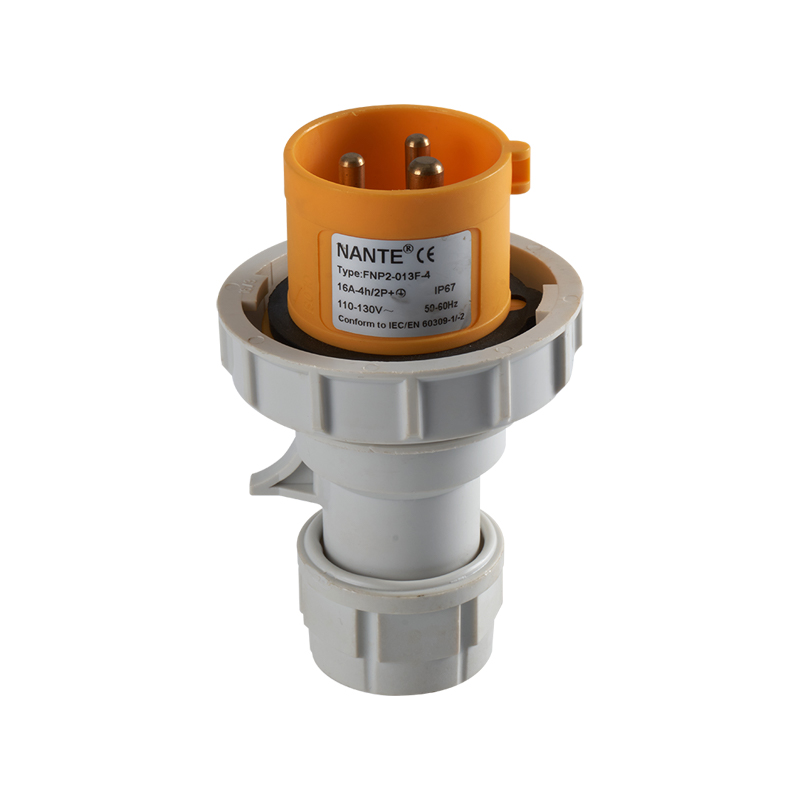

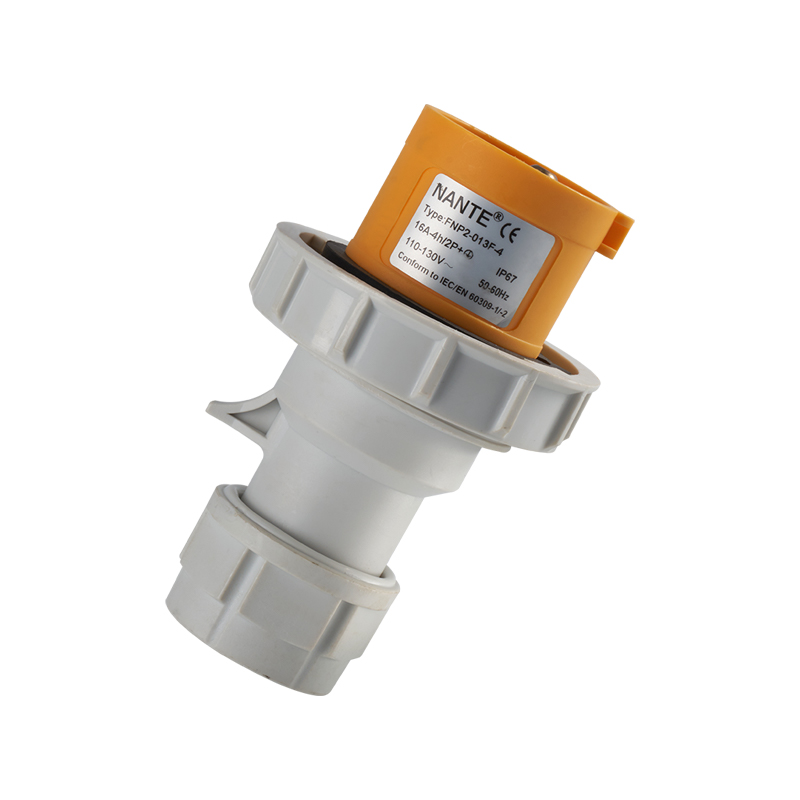

    2P+E

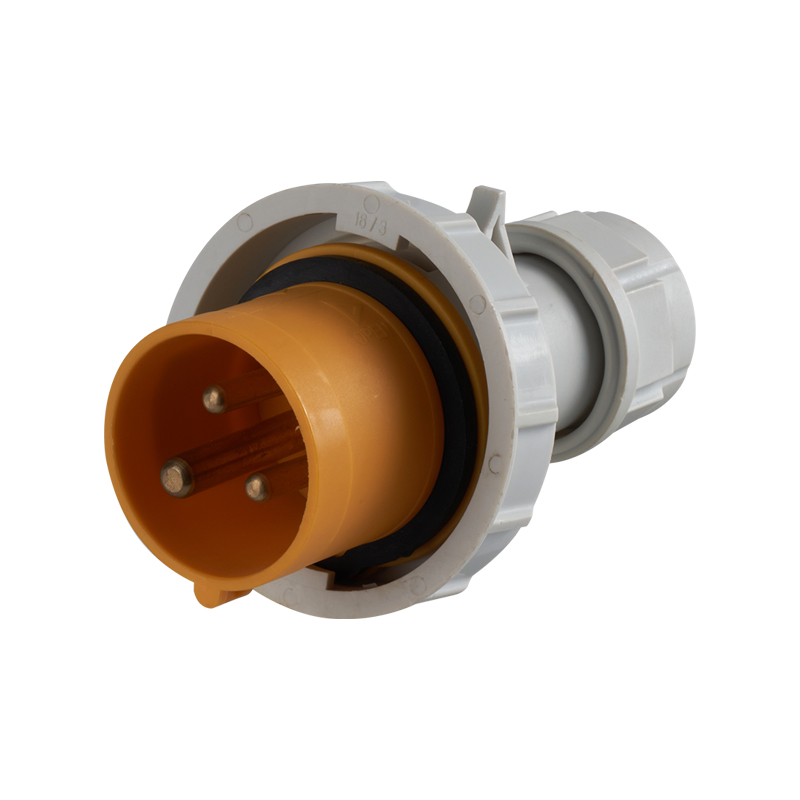

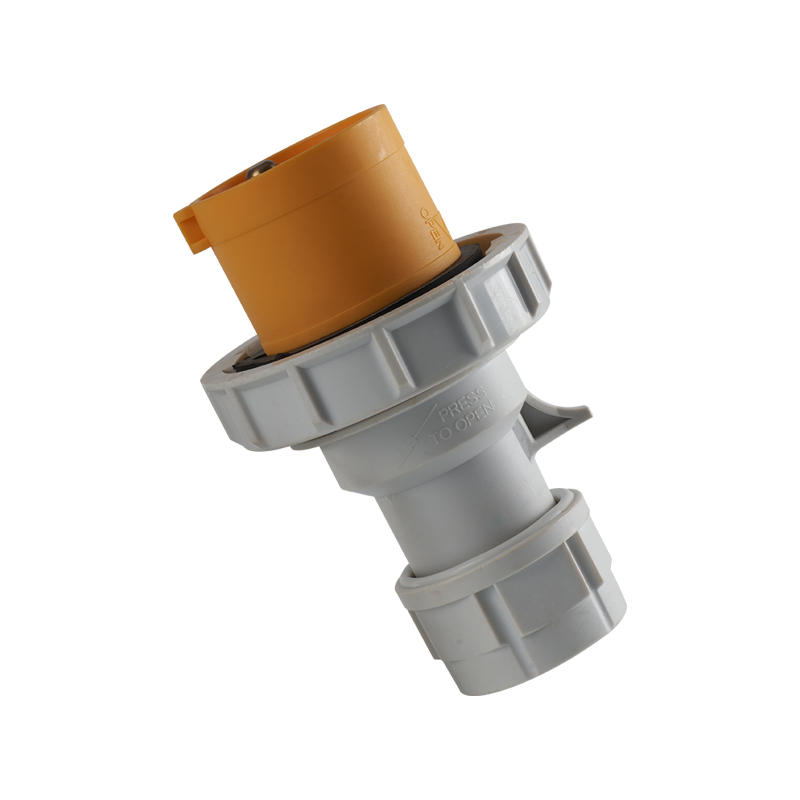

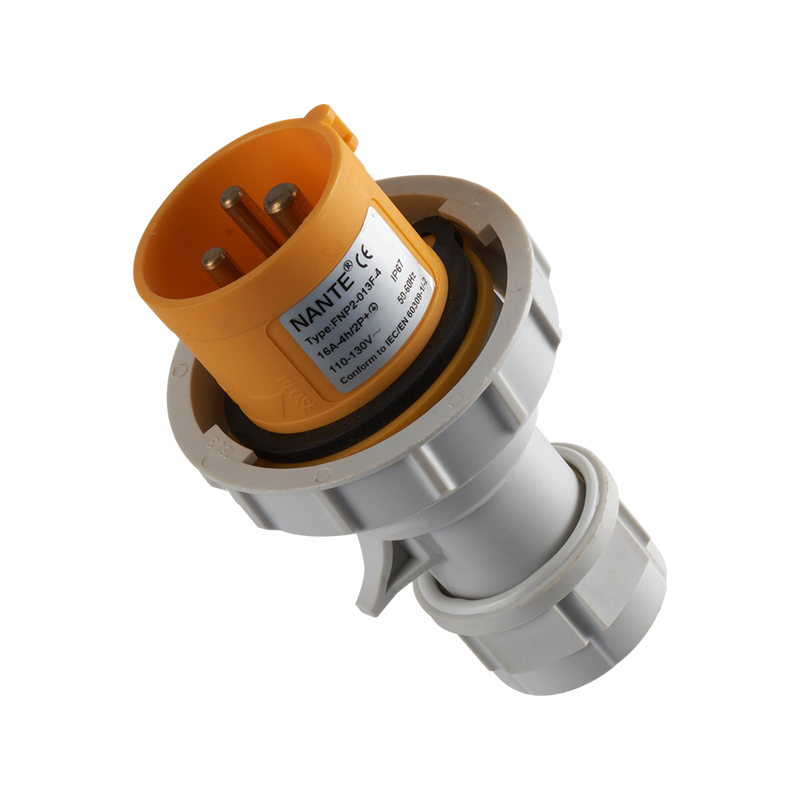

    FNP2-013F-4

    Earth contact position
    Normal current(A)
    4h
    16A
    No.poles 2P+E
    Dimension (mm) a
    b
    k
    sw
    127
    71
    6-15
    44
    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 110-130V~
    Protection degree lP67

    2P+E

    FNP2-023F-4

    Earth contact position
    Normal current(A)
    4h
    32A
    No.poles 2P+E
    Dimension (mm) a
    b
    k
    sw
    158
    93
    10-20
    54
    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 110-130V~
    Protection degree lP67

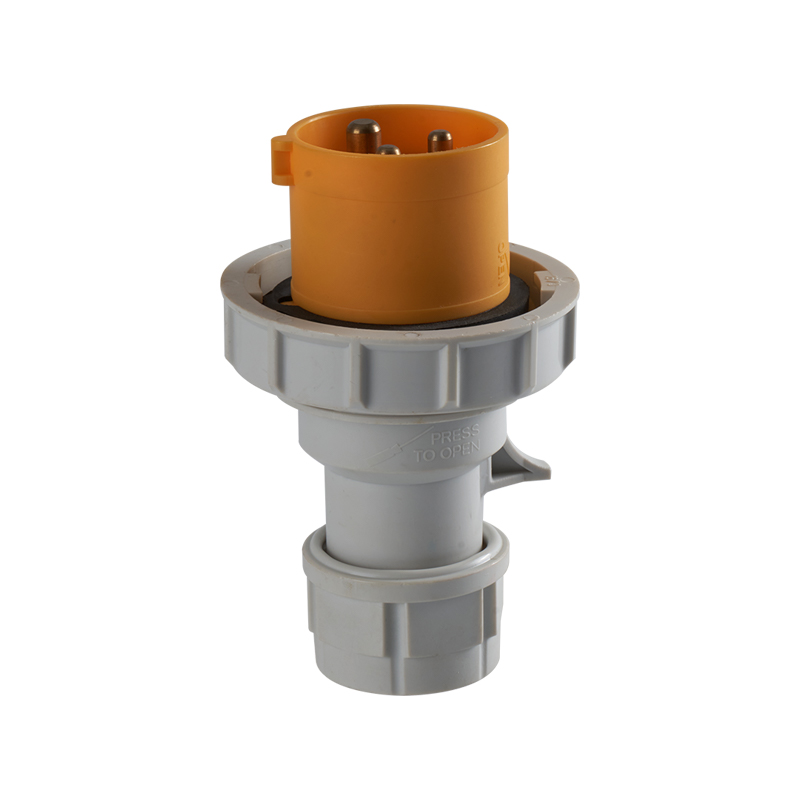

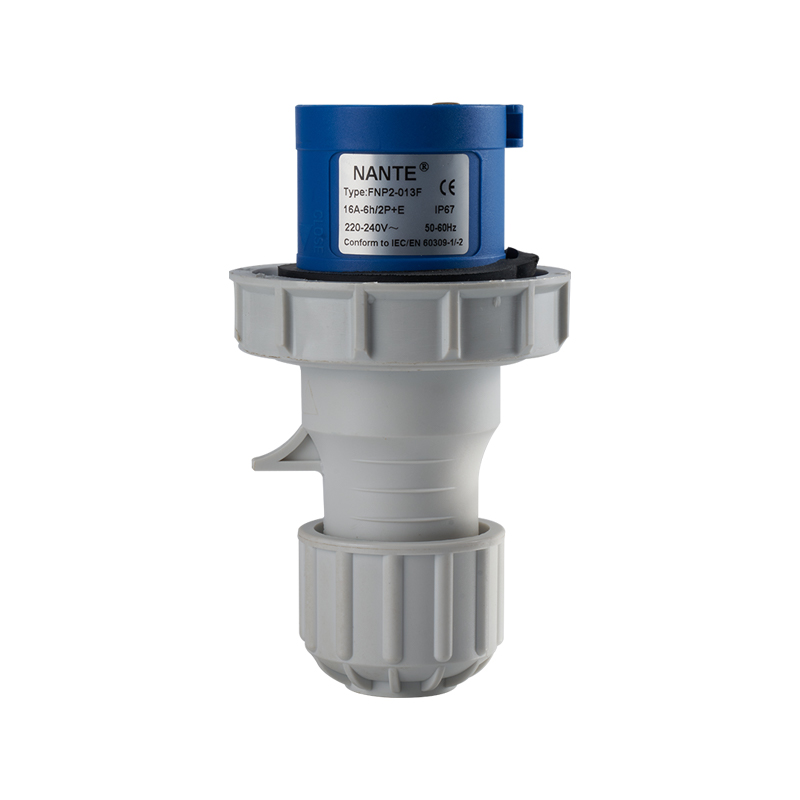

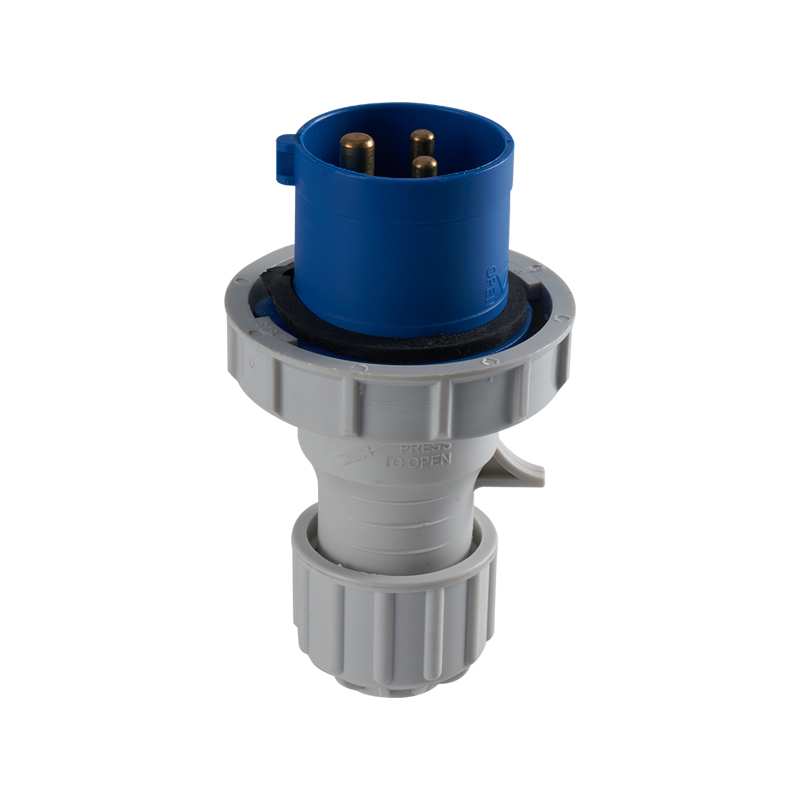

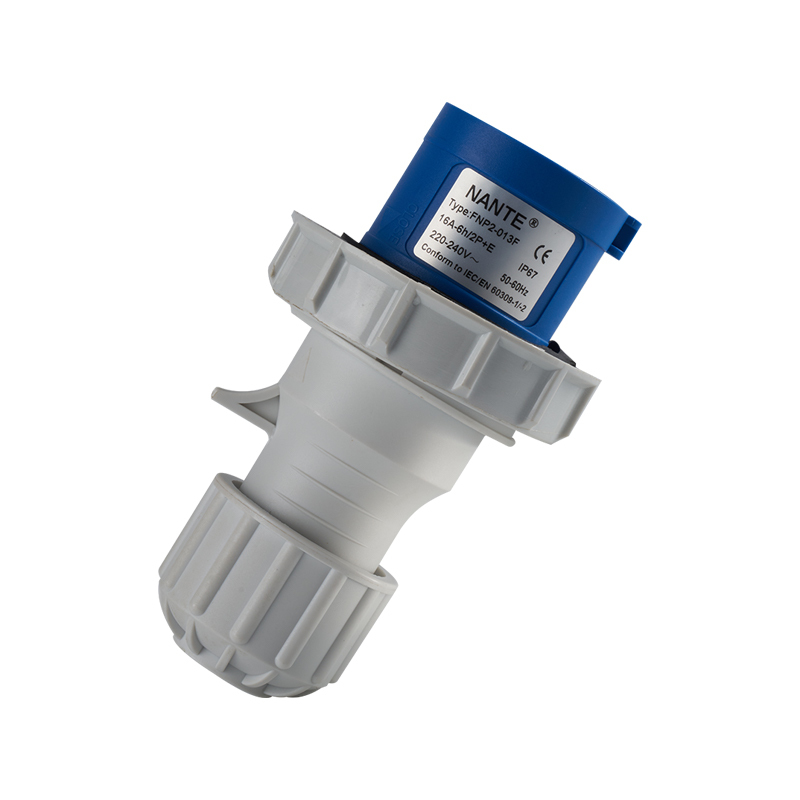

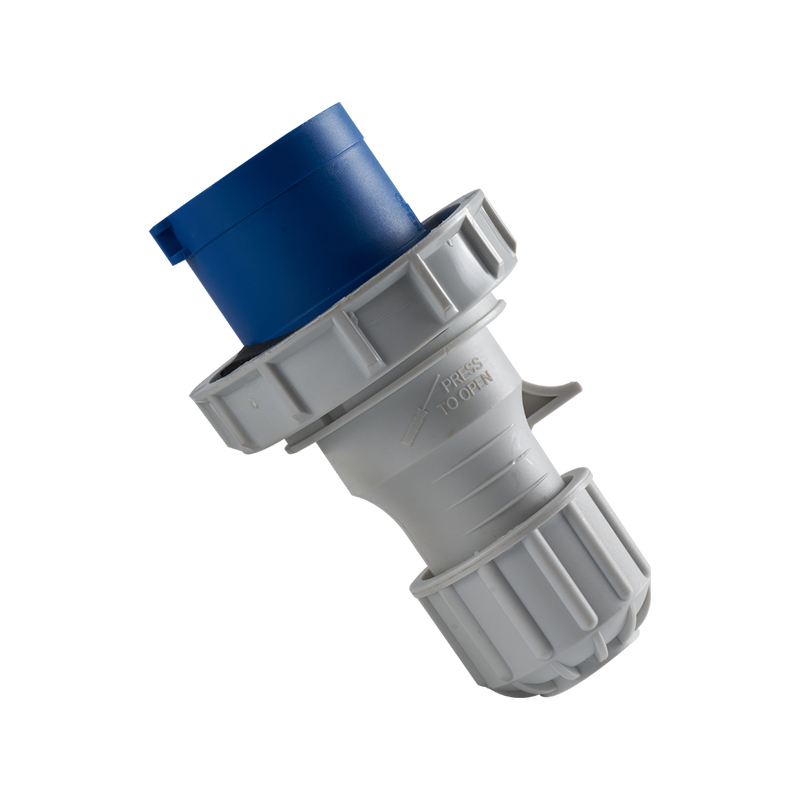

    2P+E

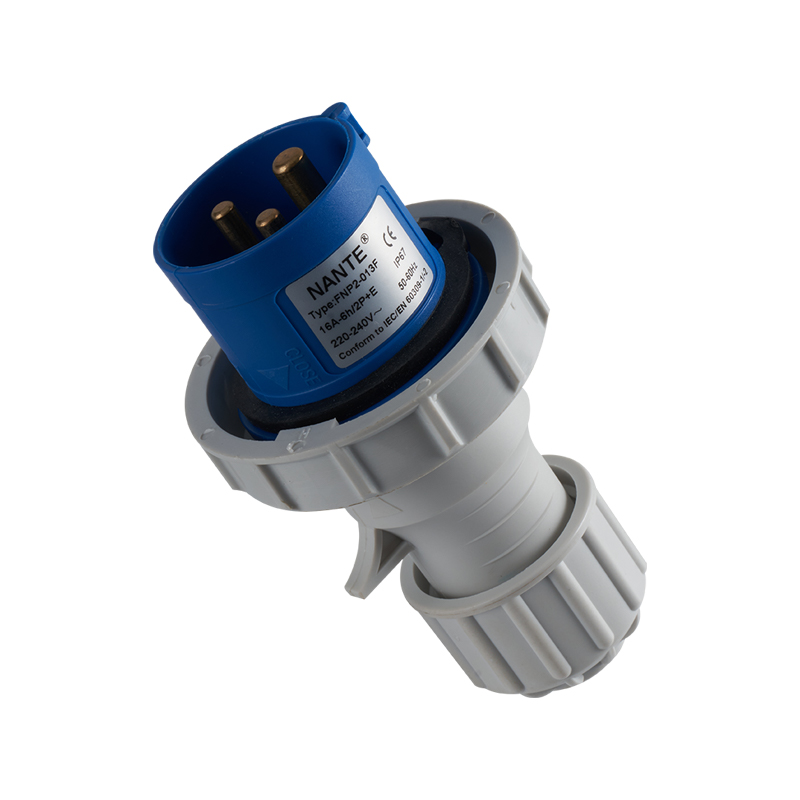

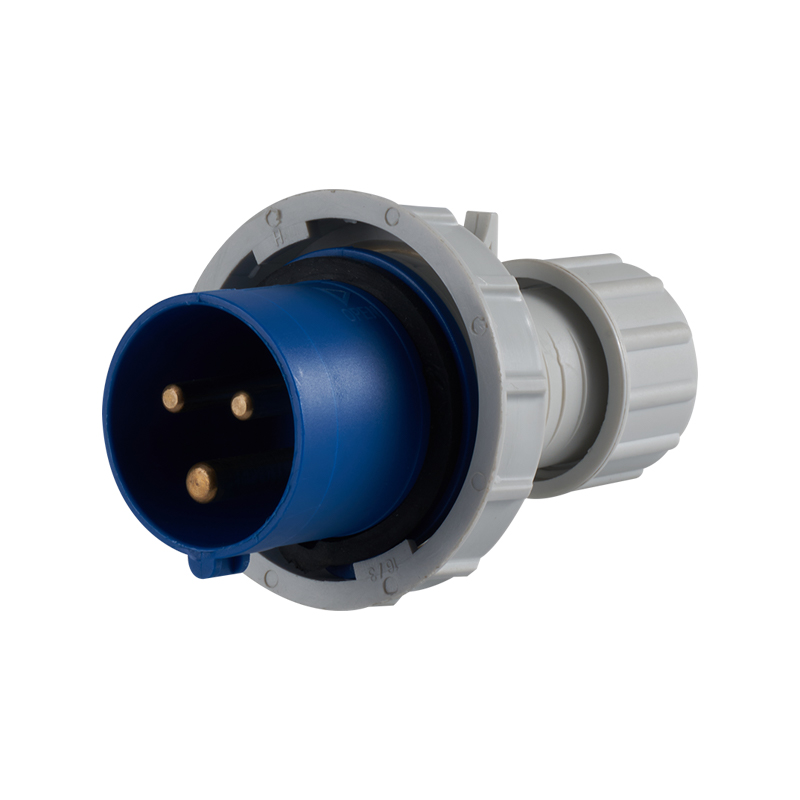

    FNP2-013F

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 2P+E
    Dimension (mm) a
    b
    k
    sw
    127
    71
    6-15
    44
    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 200-250V~
    Protection degree lP67

    2P+E

    FNP2-023F

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 2P+E
    Dimension (mm) a
    b
    k
    sw
    158
    93
    10-20
    54
    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 200-250V~
    Protection degree lP67

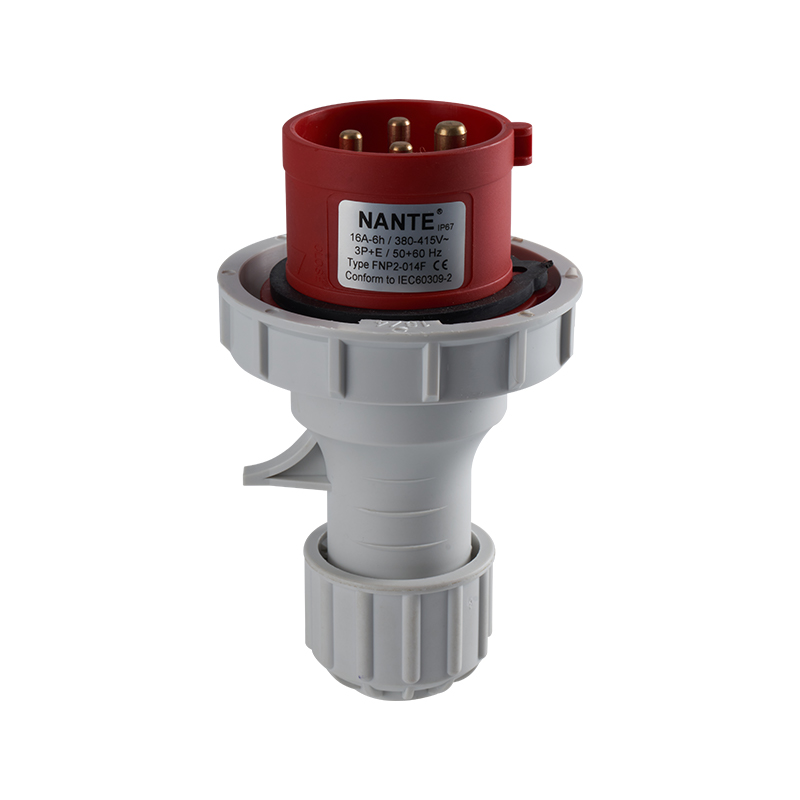

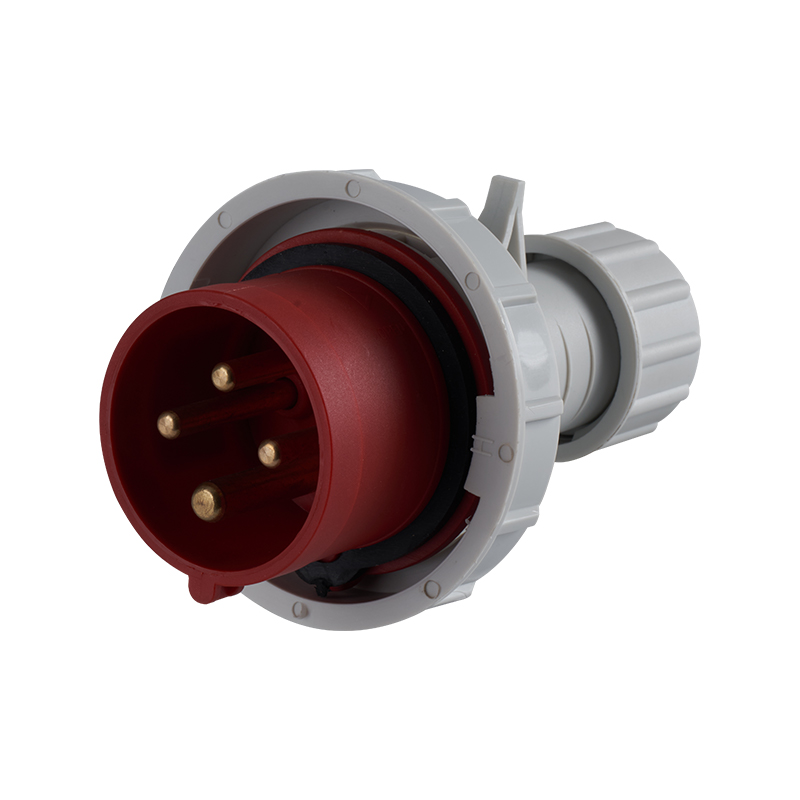

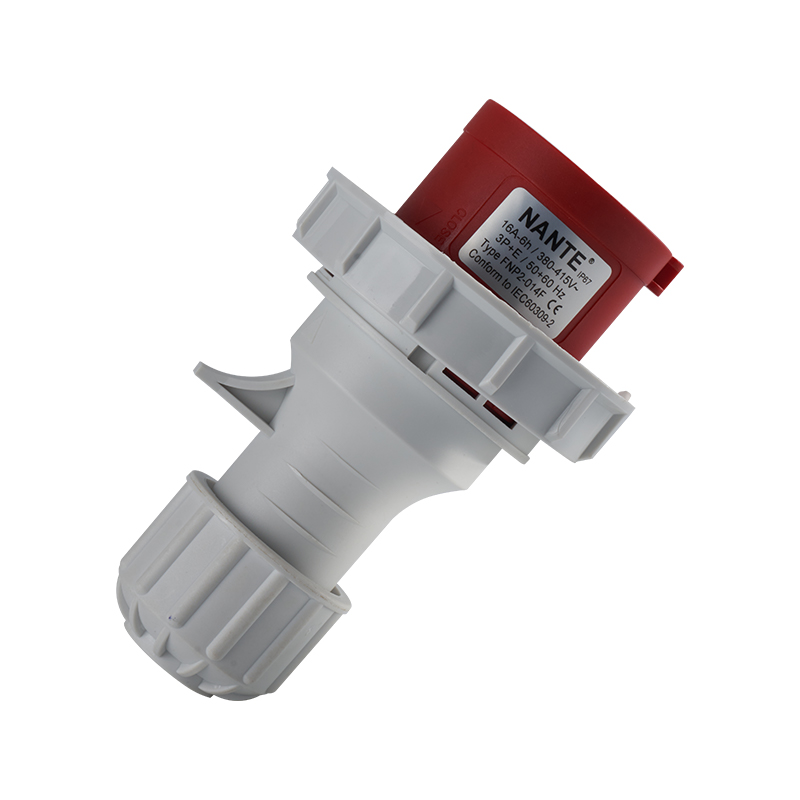

    3P+E

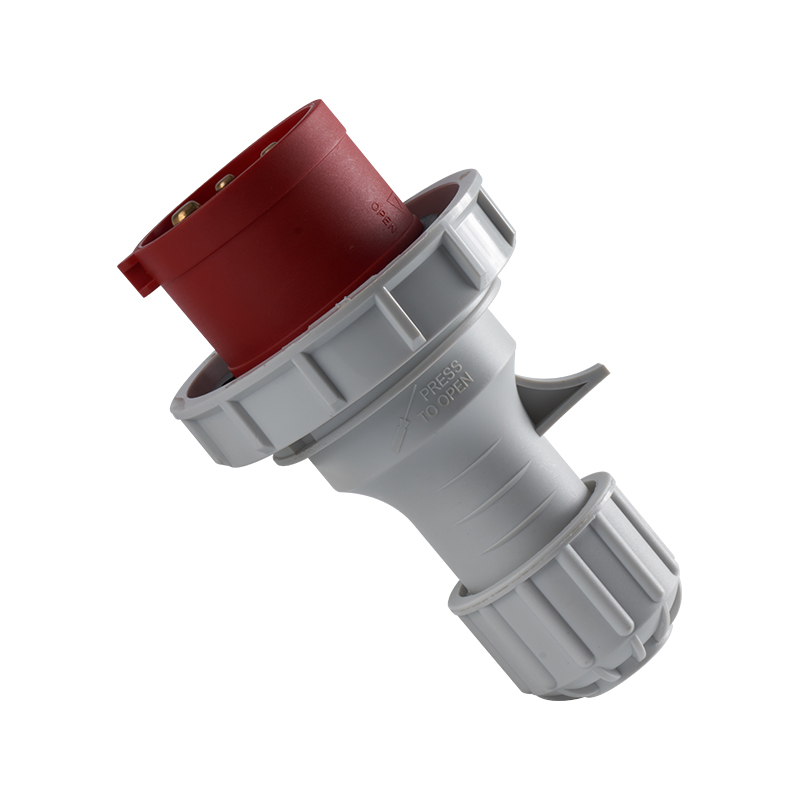

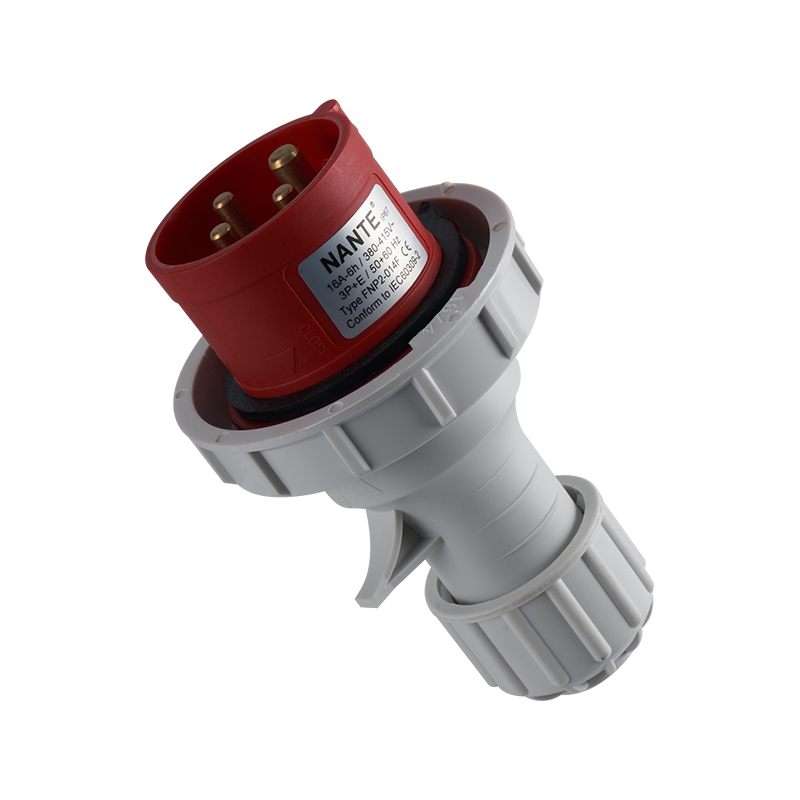

    FNP2-014F

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 3P+E
    Dimension (mm) a
    b
    k
    sw
    133
    79
    6-15
    44
    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 380-415V~
    Protection degree lP67

    3P+E

    FNP2-024F

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 3P+E
    Dimension (mm) a
    b
    k
    sw
    158
    93
    10-20
    54
    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 380-415V~
    Protection degree lP67

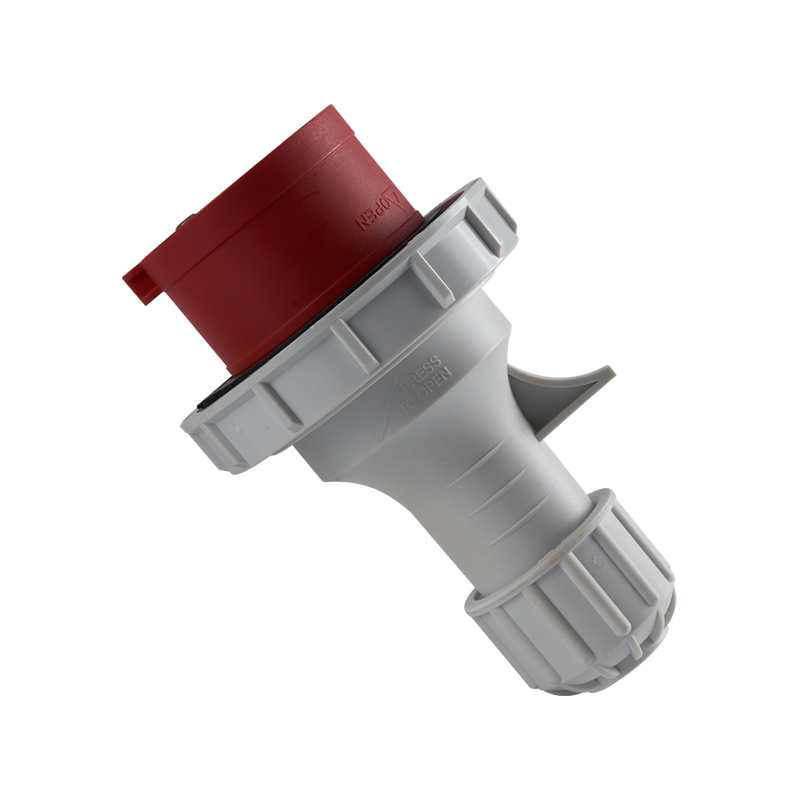

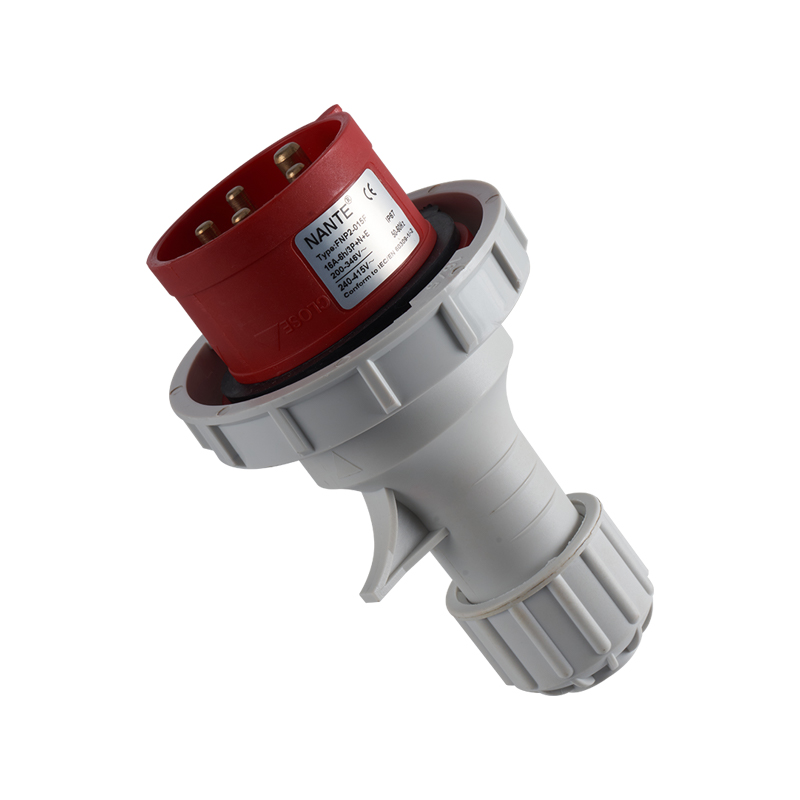

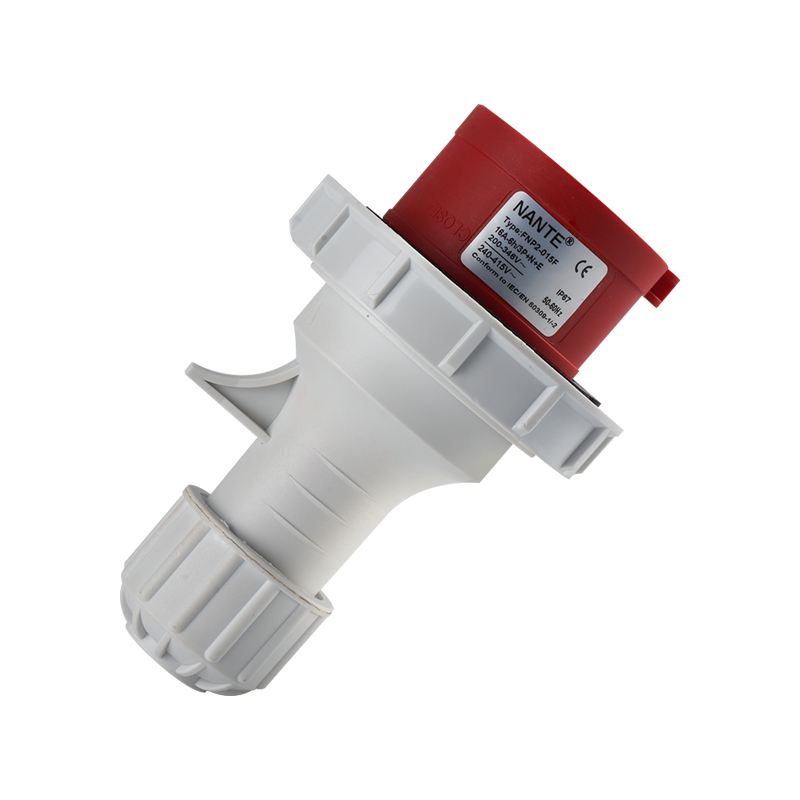

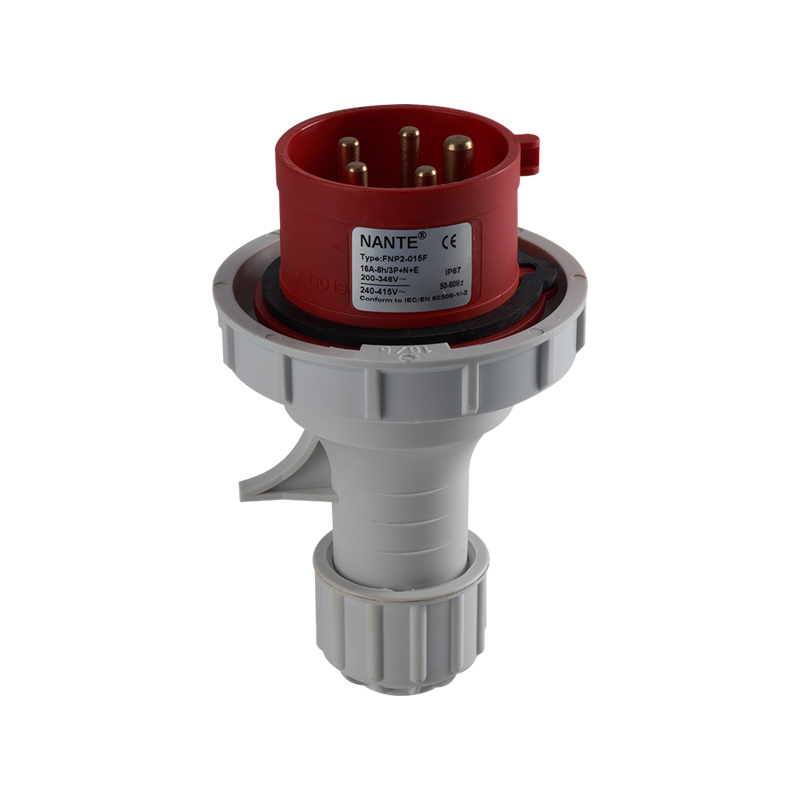

    3P+N+E

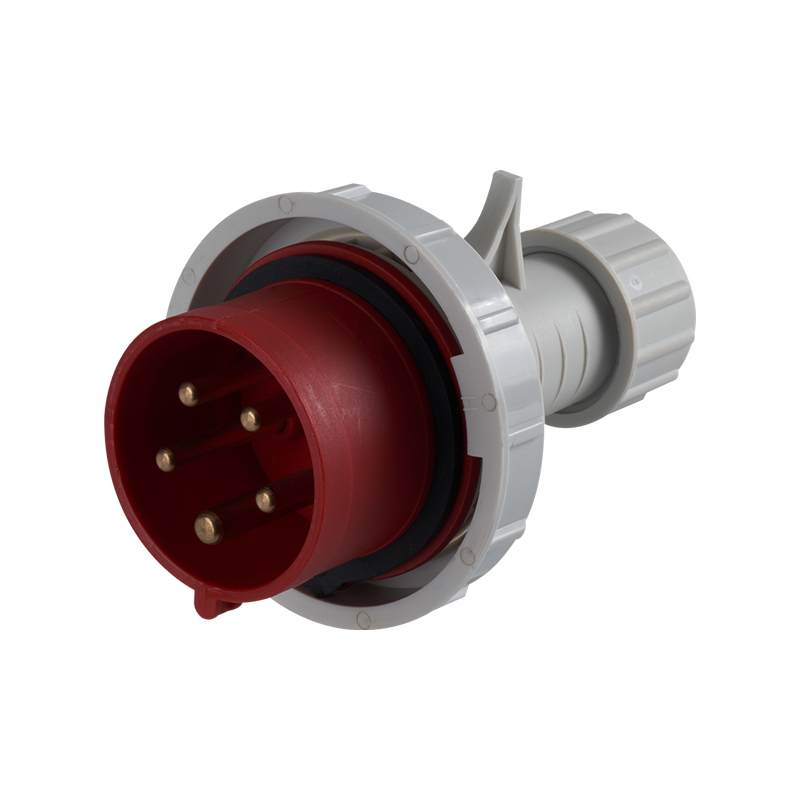

    FNP2-015F

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 3P+N+E
    Dimension (mm) a
    b
    k
    sw
    140
    87
    6-15
    44
    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 200-346V~/240-415V~
    Protection degree lP67

    3P+N+E

    FNP2-025F

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 3P+N+E
    Dimension (mm) a
    b
    k
    sw
    165
    100
    10-20
    54
    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 200-346V~/240-415V~
    Protection degree lP67

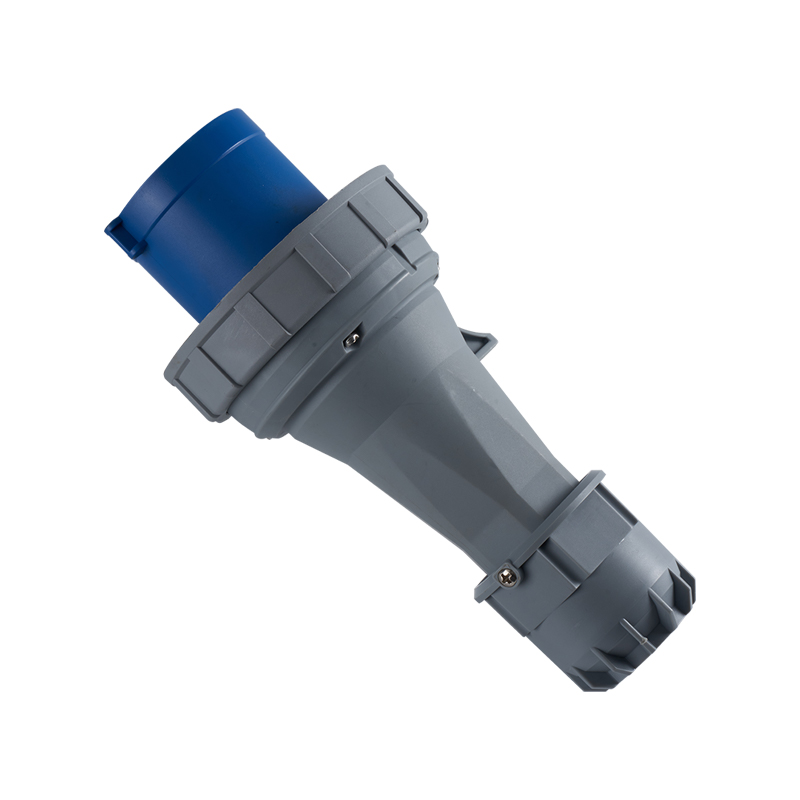

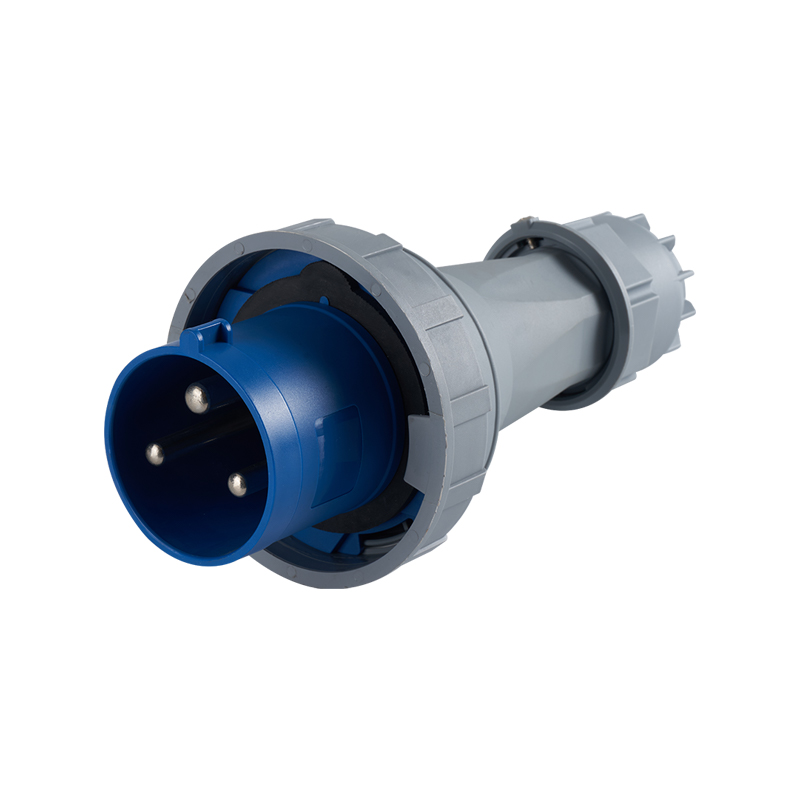

    2P+E

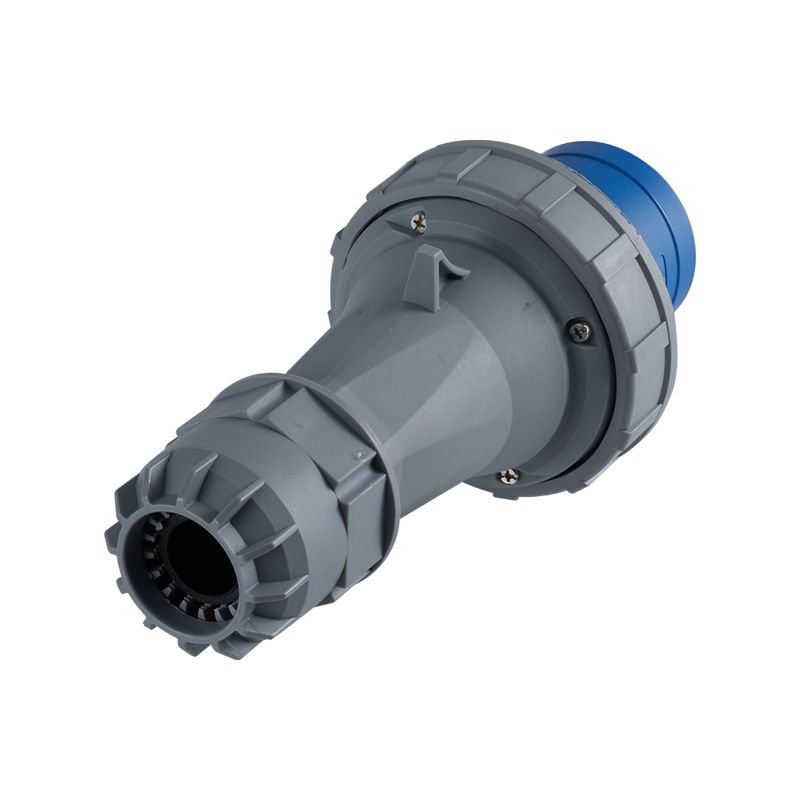

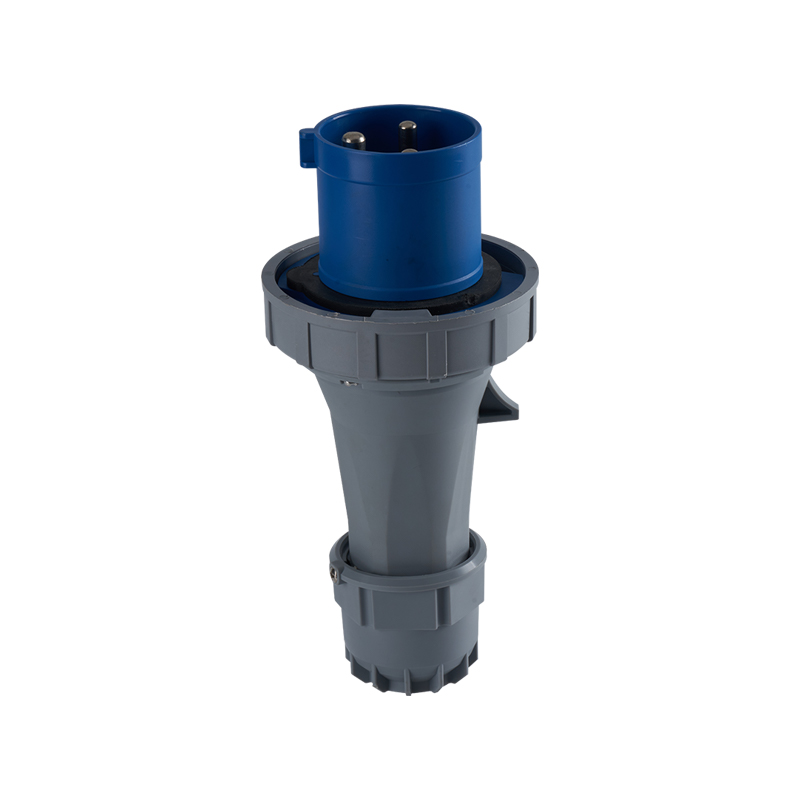

    FNP2-033F

    Earth contact position
    Normal current(A)
    6h
    63A
    No.poles 2P+E
    Dimension (mm) a
    b
    k
    sw
    250
    115
    23
    63
    Cable nominal cross-section area(mm2) 6-16
    Voltage(V) 200-250V~
    Protection degree lP67

    2P+E

    FNP2-043F

    Earth contact position
    Normal current(A)
    6h
    125A
    No.poles 2P+E
    Dimension (mm) a
    b
    k
    sw
    275
    128
    31
    79
    Cable nominal cross-section area(mm2) 16-50
    Voltage(V) 200-250V~
    Protection degree lP67

    3P+E

    FNP2-034F

    Earth contact position
    Normal current(A)
    6h
    63A
    No.poles 3P+E
    Dimension (mm) a
    b
    k
    sw
    250
    115
    23
    63
    Cable nominal cross-section area(mm2) 6-16
    Voltage(V) 380-415V~
    Protection degree lP67

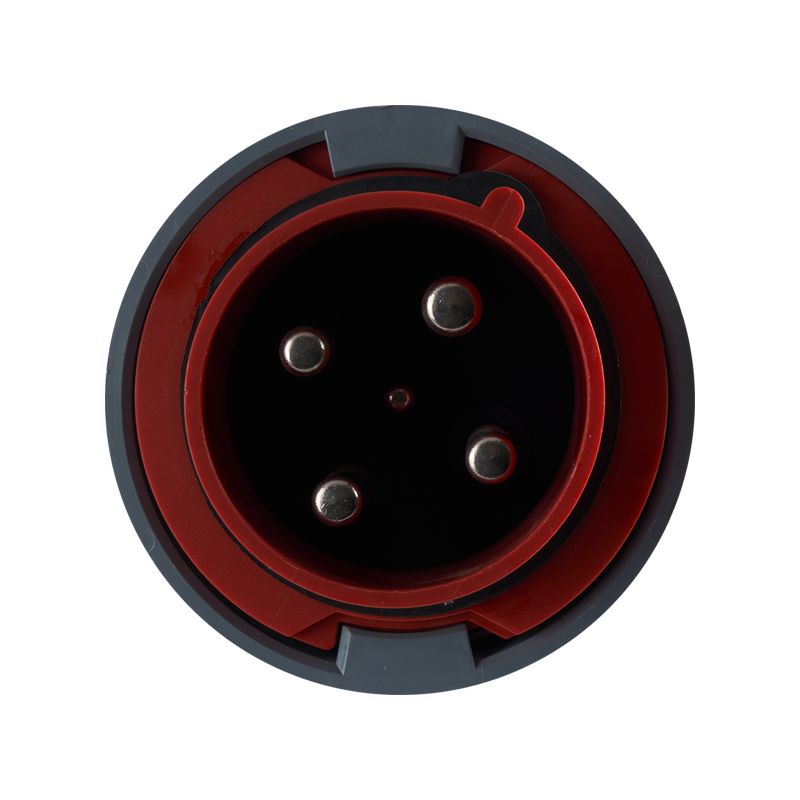

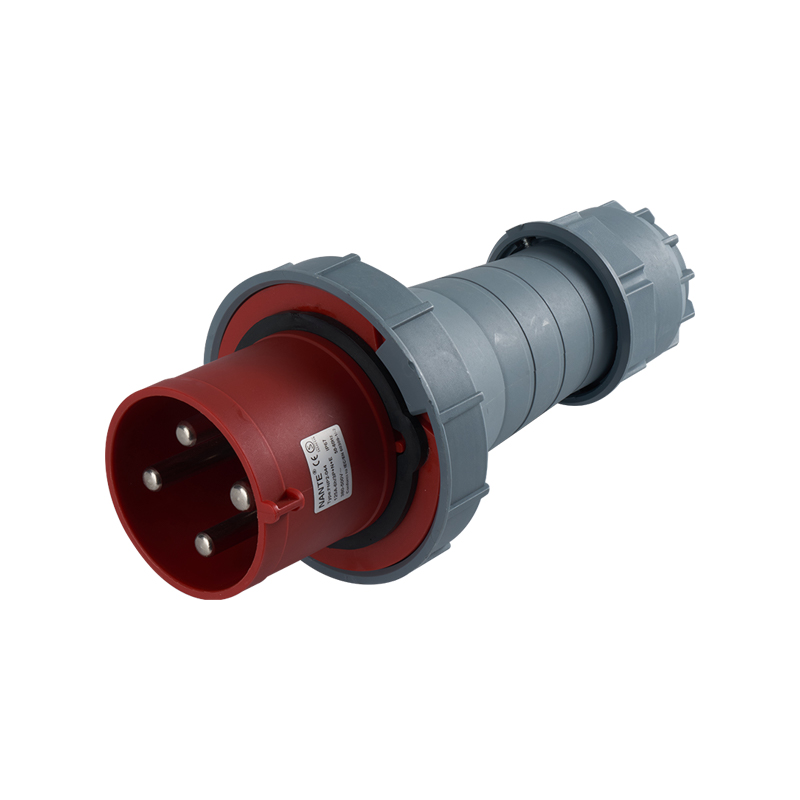

    3P+E

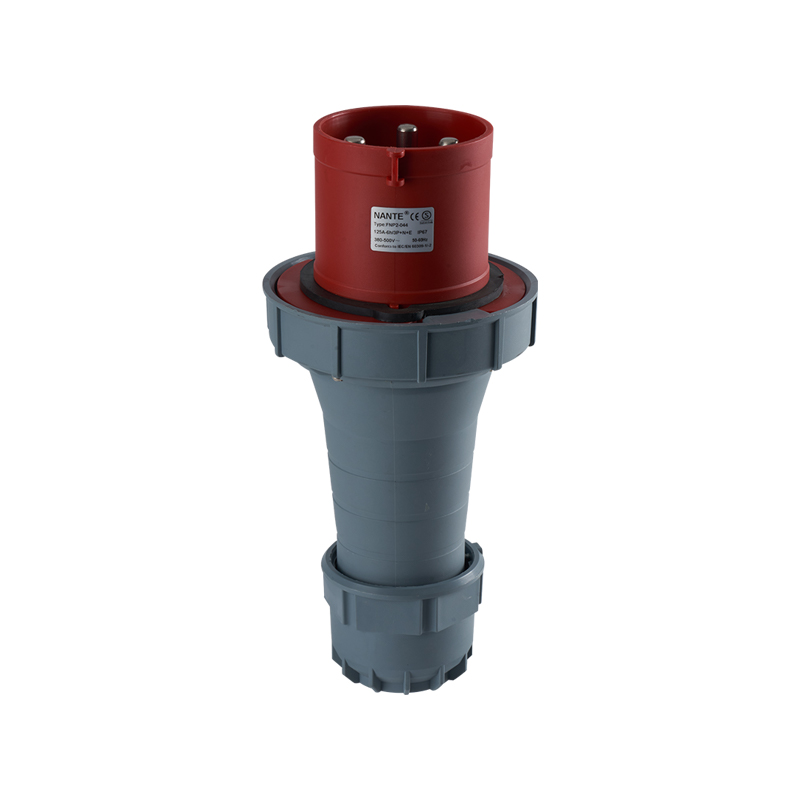

    FNP2-044F

    Earth contact position
    Normal current(A)
    6h
    125A
    No.poles 3P+E
    Dimension (mm) a
    b
    k
    sw
    275
    128
    31
    79
    Cable nominal cross-section area(mm2) 16-50
    Voltage(V) 380-415V~
    Protection degree lP67

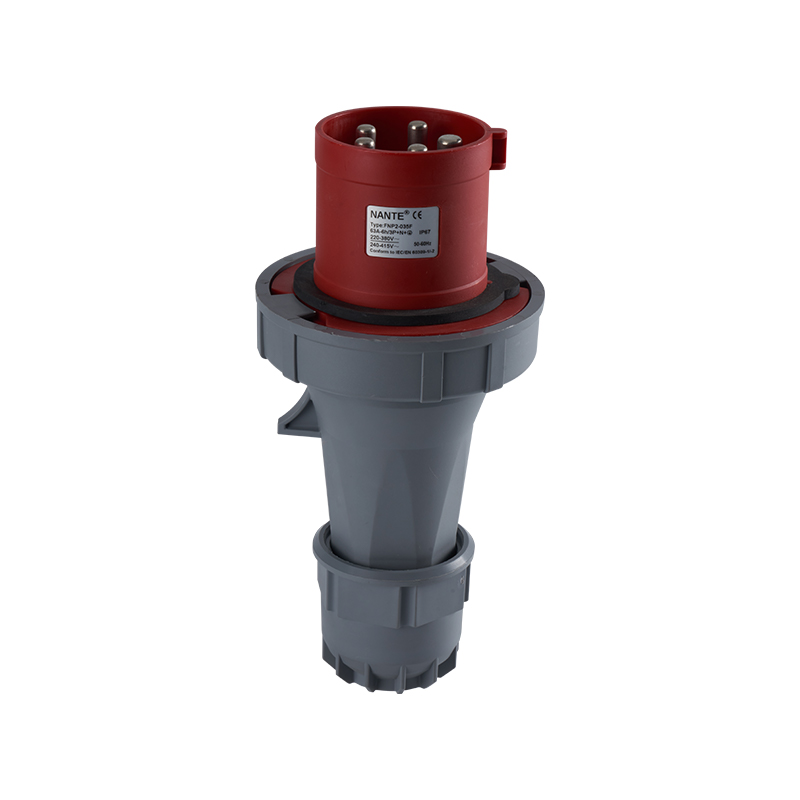

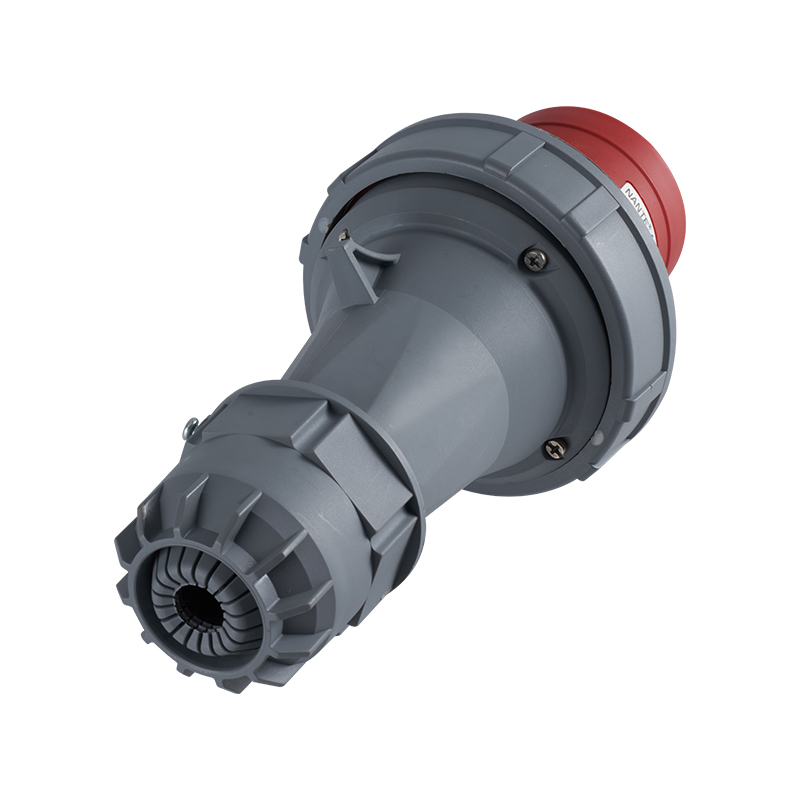

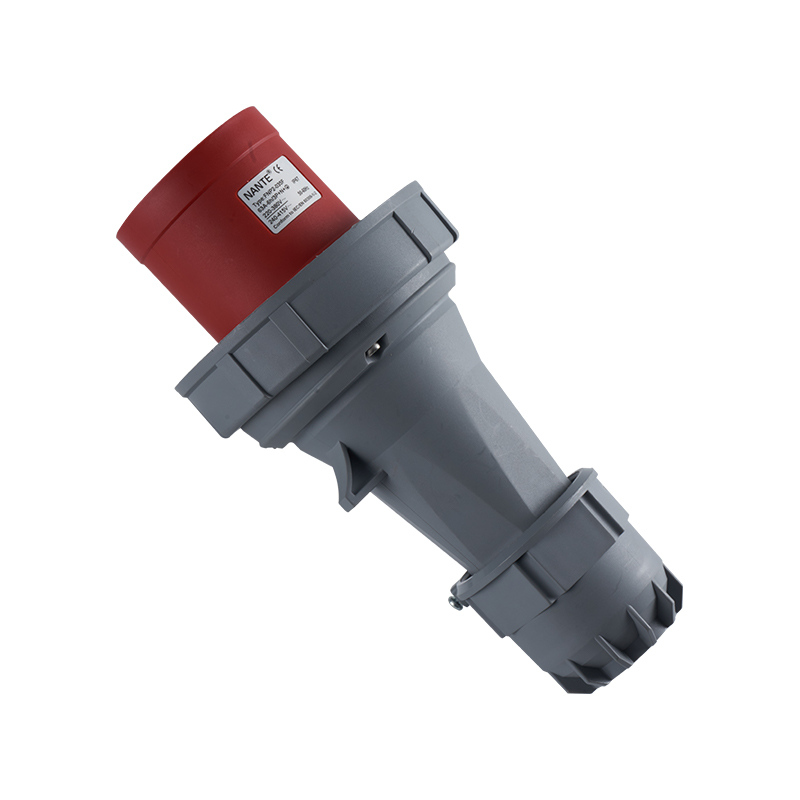

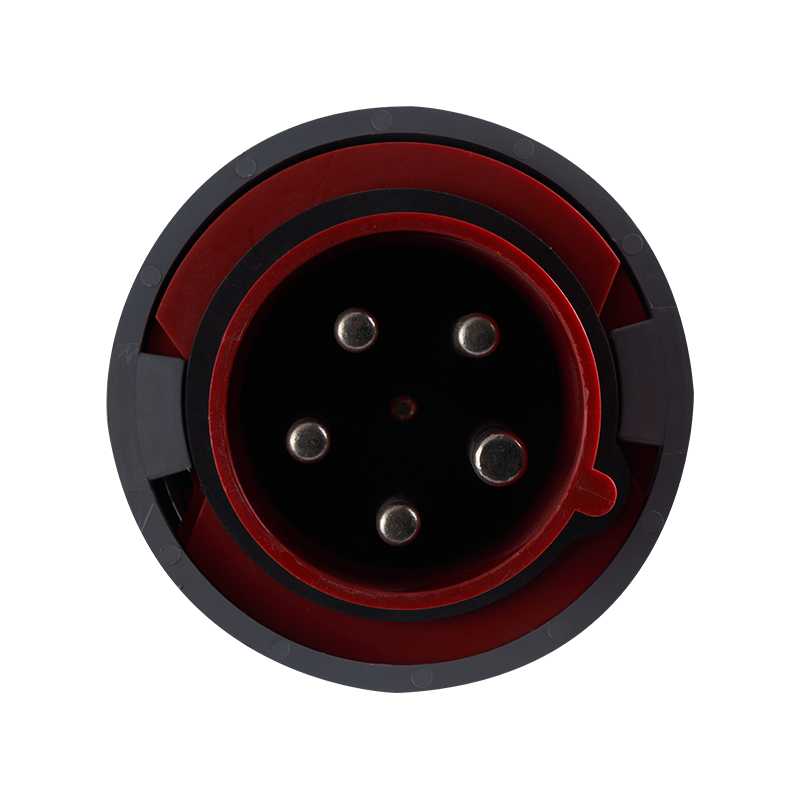

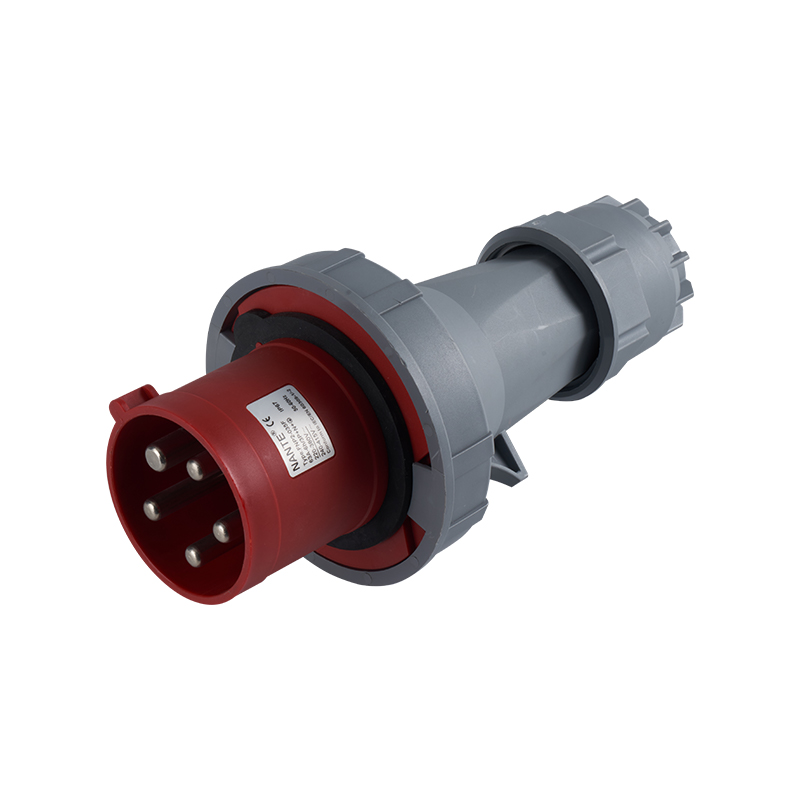

    3P+N+E

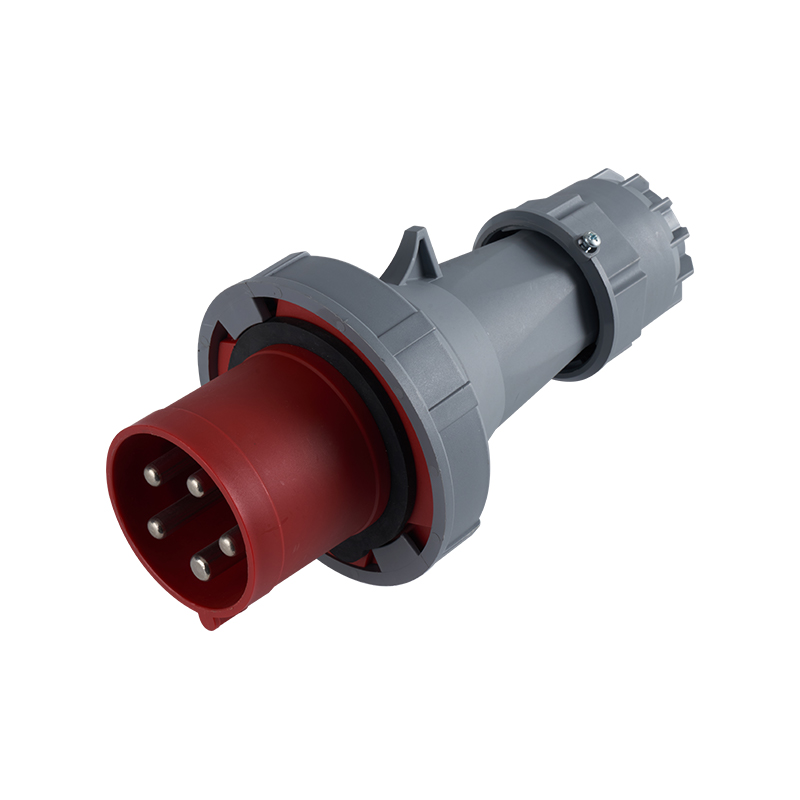

    FNP2-035F

    Earth contact position
    Normal current(A)
    6h
    63A
    No.poles 3P+N+E
    Dimension (mm) a
    b
    k
    sw
    250
    115
    23
    63
    Cable nominal cross-section area(mm2) 6-16
    Voltage(V) 200-346V~/240-415V
    Protection degree lP67

    3P+N+E

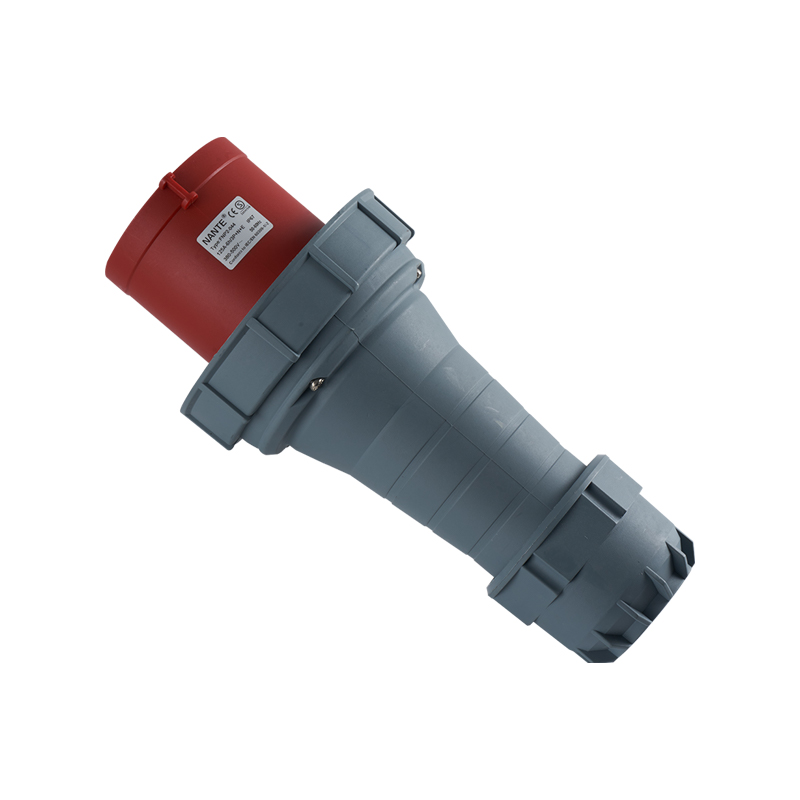

    FNP2-045F

    Earth contact position
    Normal current(A)
    6h
    125A
    No.poles 3P+N+E
    Dimension (mm) a
    b
    k
    sw
    275
    128
    31
    79
    Cable nominal cross-section area(mm2) 16-50
    Voltage(V) 200-346V~/240-415V
    Protection degree lP67

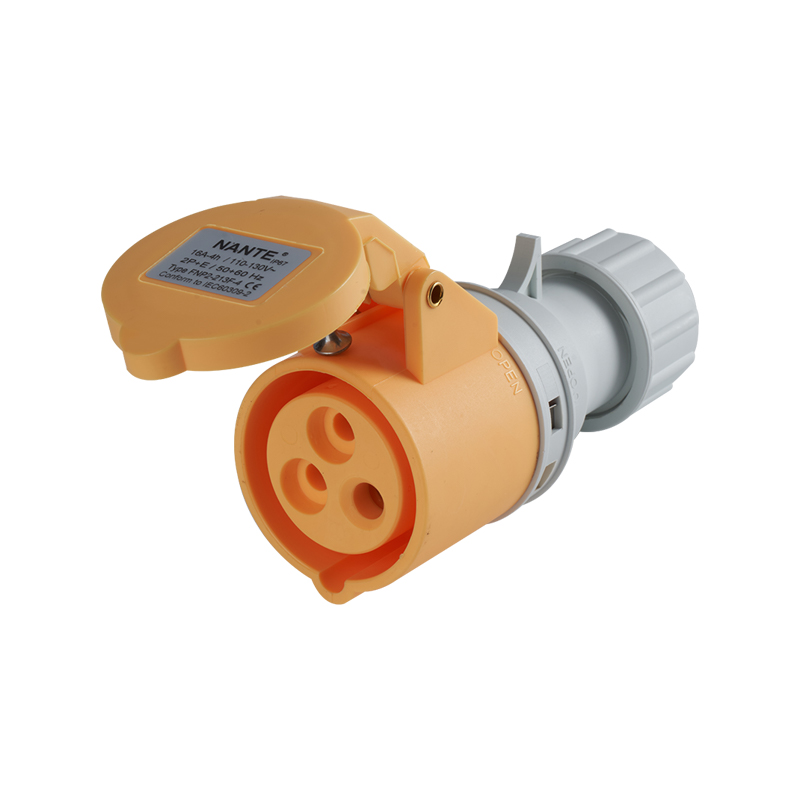

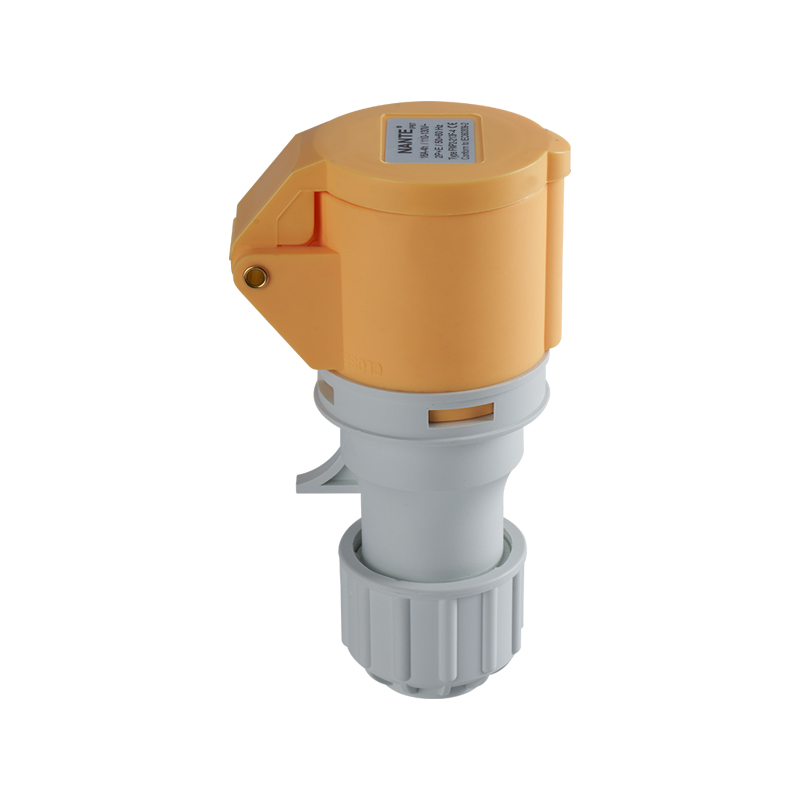

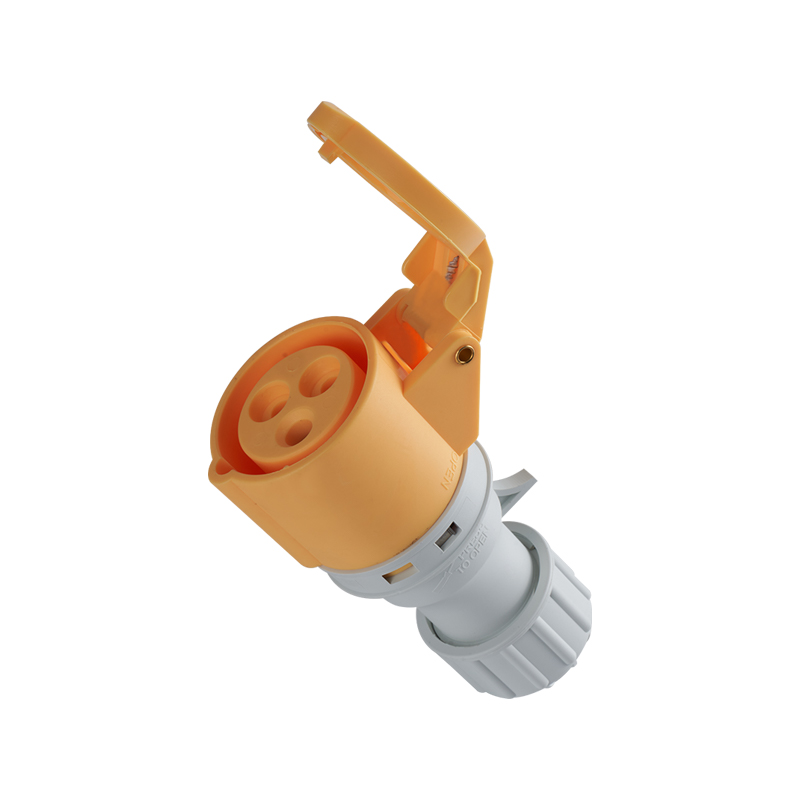

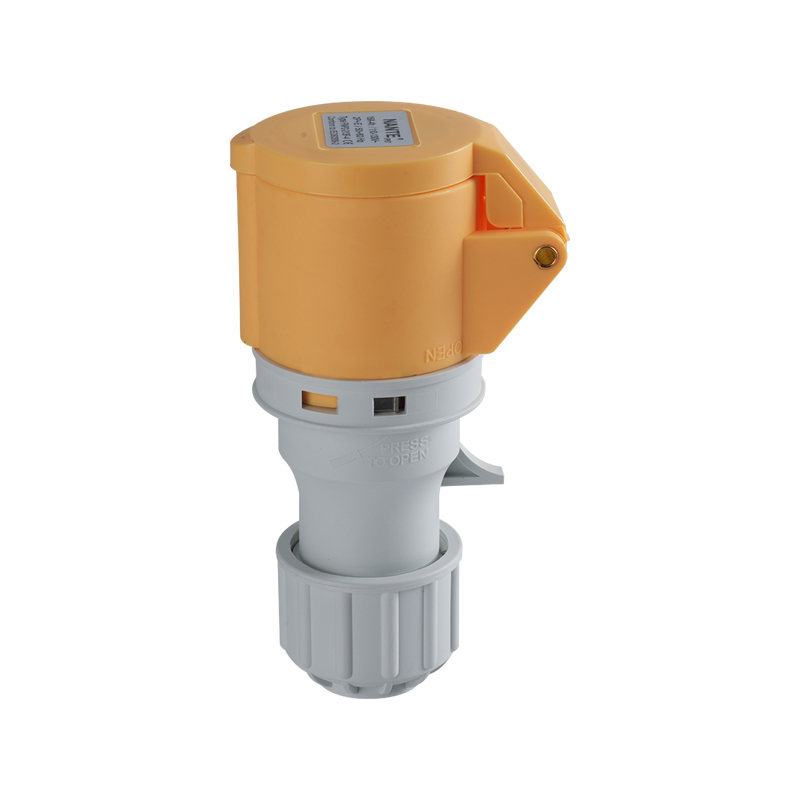

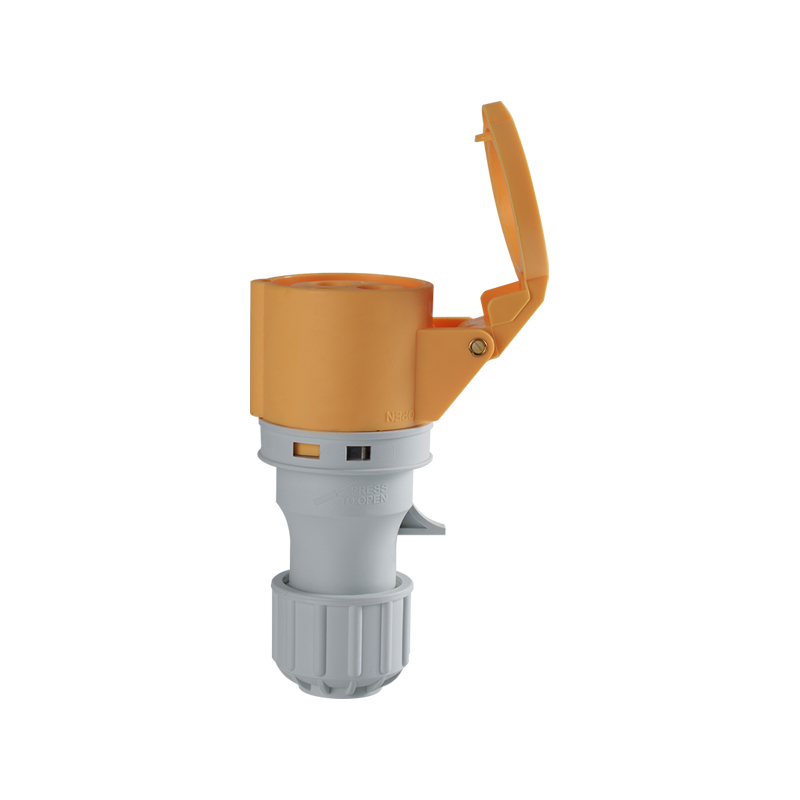

    2P+E

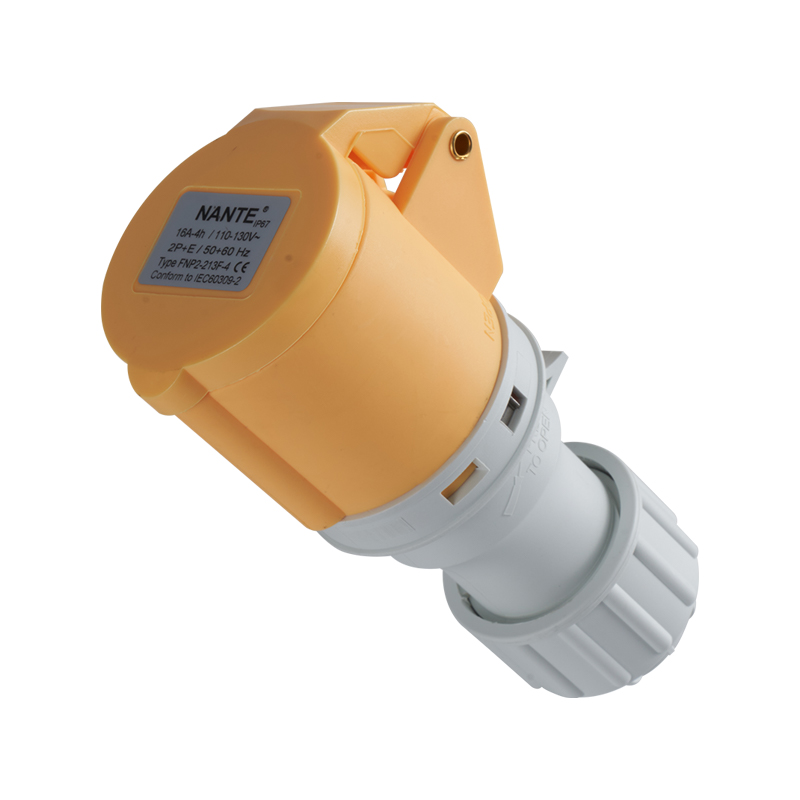

    FNP2-213-4

    Earth contact position
    Normal current(A)
    4h
    16A
    No.poles 2P+E
    Dimension (mm) a
    b
    c
    d
    127
    51
    77
    42.5
    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 110-130V~
    Protection degree IP44

    2P+E

    FNP2-223-4

    Earth contact position
    Normal current(A)
    4h
    32A
    No.poles 2P+E
    Dimension (mm) a
    b
    c
    d
    147
    65.5
    96.5
    55.5
    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 110-130V~
    Protection degree IP44
